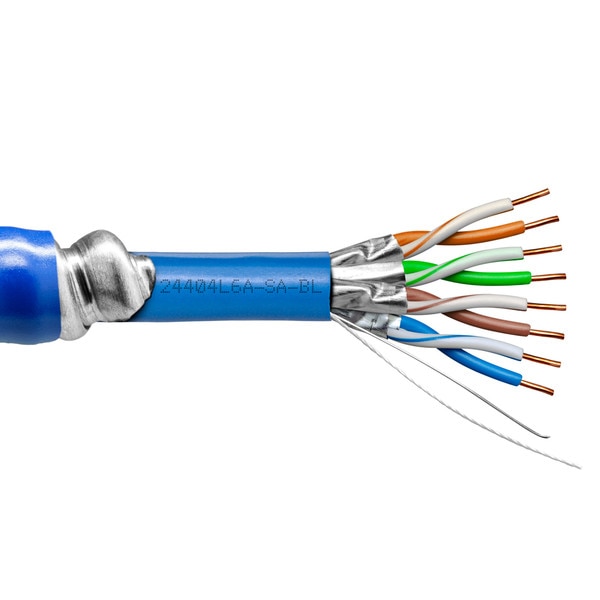

Provo CAT6A STP Cable 23-4pr SOL BC FL SH AIA 500MHz CMR ETL FT4 UL RoHS – Blue JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- Polyolefin Insulation
- STP
- 500Mhz
- Each Pair 100% Alum. Foil Shield
- Tinned Copper Drain Wire
- Blue PVC CMR FT-4 Jacket
- Aluminium Interlocked Armour
- Colour Code: Chart Number 5
Specifications
| Specifications for: 24404L6A-SA-BL: Provo CAT6A STP Cable 23-4pr SOL BC FL SH AIA 500MHz CMR ETL FT4 UL RoHS – Blue JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Tinned Copper |
| Insulation Type | Polyolefin |
| Jacket Type | PVC |
| Armour | AIA |
| Armour O.D. | 0.570 |
| Nominal O.D. | 0.570 |
| Weight (lb) | 71 |
| Flame Test Rating | FT-4 |
| Voltage | na |
| MHz | 500 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 150 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Cat6A 500Mhz - Foil Shielded - FT-4 |
| Nominal Attenuation db/100ft. | |
|---|---|
| MHz | dB/100ft. |
| 1 | 2 |
| 5 | na |
| 10 | 6.36 |
| 30 | na |
| 50 | na |
| 100 | 20.7 |
| 200 | 29.8 |
| 400 | na |
| 500 | 48.77 |
| 700 | na |
| 900 | na |
| 1000 | na |
| 1200 | na |
| 1450 | na |
| 2400 | na |
