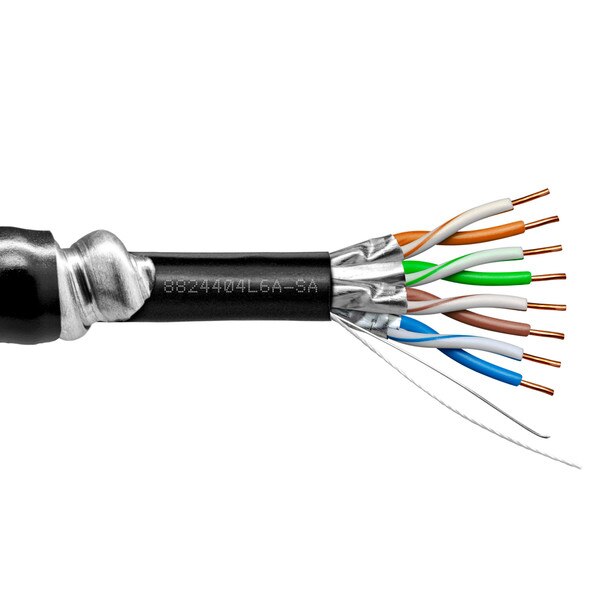

Provo Outdoor Direct Burial CAT6A 500MHz 23-4pr SOL BC FL SH AIA ETL UL RoHS – Black JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- PE Insulation
- 500Mhz
- PE Outdoor/Burial Jacket – Black
- Aluminium Interlocked Armour
- -20° C +75° C
- Colour Code: Chart Number 5
Specifications
| Specifications for: 8824404L6A-SA: Provo Outdoor Direct Burial CAT6A 500MHz 23-4pr SOL BC FL SH AIA ETL UL RoHS – Black JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Tinned Copper |
| Insulation Type | Polyethylene |
| Jacket Type | LDPE |
| Armour | AIA |
| Armour O.D. | 0.570 |
| Nominal O.D. | 0.570 |
| Weight (lb) | 66 |
| Flame Test Rating | na |
| Voltage | na |
| MHz | 500 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 150 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Outdoor Direct Burial Foil Shielded CAT6 550Mhz |
| Nominal Attenuation db/100ft. | |
|---|---|
| MHz | dB/100ft. |
| 1 | 2 |
| 5 | na |
| 10 | 6.36 |
| 30 | na |
| 50 | na |
| 100 | 20.7 |
| 200 | 29.8 |
| 400 | na |
| 500 | 48.77 |
| 700 | na |
| 900 | na |
| 1000 | na |
| 1200 | na |
| 1450 | na |
| 2400 | na |
