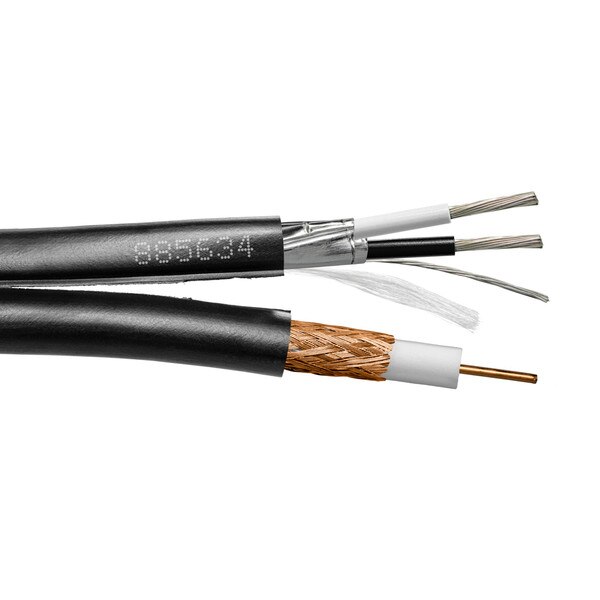

Provo RoHS Siamese RG6U CCTV Outdoor Direct Burial 18 AWG SOL BC 95% BRD SH + 18-2c FL SH Control Cable – Black JKT
Details
Details
Summary
- 18awg Solid Bare Copper Conductor
- Foam Polyethylene Dielectric
- 95% Braid Bare Copper Shield
- High Density UV Resistant Polyethylene Jacket – Black
- -40° C +80° C
- 18awg Solid Bare Copper, 95% Braid Shield w/ 2c 18 awg 100% Foil Shield Control Cable
Specifications
| Specifications for: 885634: Provo RoHS Siamese RG6U CCTV Outdoor Direct Burial 18 AWG SOL BC 95% BRD SH + 18-2c FL SH Control Cable – Black JKT | |
|---|---|
| Conductors | 3c |
| Gauge (AWG) | 1c-18 :RG6 2c-18 : Power |
| Conductor Type | Solid Bare Copper |
| Shielding | RG6U: 95% Bare Copper Braided 18-2c Control Cable: 100% Foil Shield |
| Drain Wire | na |
| Insulation Type | Foam Polyethylene Dielectric |
| Jacket Type | HDPE |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.275 x 0.55 |
| Weight (lb) | 90/45 |
| Flame Test Rating | na |
| Voltage | na |
| MHz | na |
| Temperature | -40 to 80 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | na |
| Category | Siamese RG6U CCTV Outdoor Direct burial |
