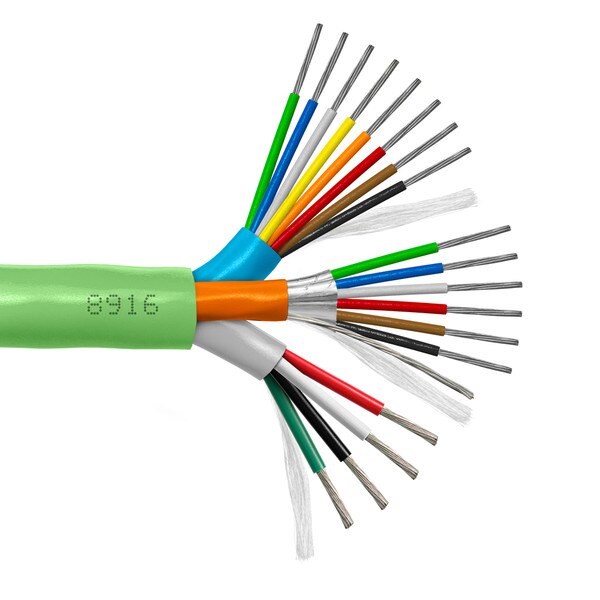

Provo Door Access Control Cable 22-6c STR TC FL SH + 18-4c STR TC UNSH + 22-8c STR TC UNSH CSA FT4 UL RoHS – Light Green JKT
Details
Details
Summary
- Consists of:
- Orange – Card Reader – 6c-22awg 100% F-Shld Stranded & Tinned Copper Drain Wire
- Blue – Station "Z" Wire – 8c-22awg Unshielded Stranded
- Grey – Power Cable – 4c-18awg N-Shld Stranded
- Insulation: PVC
- Overall FT-4 PVC Jacket – Light Green
Specifications
| Specifications for: 8916: Provo Door Access Control Cable 22-6c STR TC FL SH + 18-4c STR TC UNSH + 22-8c STR TC UNSH CSA FT4 UL RoHS – Light Green JKT | |
|---|---|
| Conductors | 18c |
| Gauge (AWG) | 6c-22awg 4c-18awg 8c-22awg |
| Conductor Type | 6c 7x26 Stranded 4c 16x30 Stranded 8c 7x30 Stranded |
| Shielding | 6c-22awg - 100% Aluminium Foil Shielded 4c-18awg Unshielded 8c-22awg Unshielded |
| Drain Wire | Tinned Copper |
| Insulation Type | PVC |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.580 |
| Weight (lb) | 120/60 |
| Flame Test Rating | FT-4 |
| Voltage | 300 |
| MHz | na |
| Temperature | na |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | na |
| Category | Door Access Control FT-4 |
