Alta Labs AP6 Pro Outdoor WiFi 6 4x4 Cloud Managed Ceiling/Wall Indoor Access Point
Details
Details
Summary
- IP68 Rated for Optimal Weather Protection
- WiFi 6 with WiFi 7 Benefits
- Superior Range and Performance
- Omnidirectional + Mesh Connectivity
- Scalable Cloud-Based Management
- Mobile App
- Advanced Filtering - DPI Engine
- Device Specific Exceptions
- AltaPass™ Multi-Password Technology
- Hotspot Functionality
- On-The-Fly Changes and Scanning
- Wireless Network Color Coding
- SSID Broadcasting Flexibility
- Status Snapshots
- Customizable Dashboard
- Device Cards
Overview

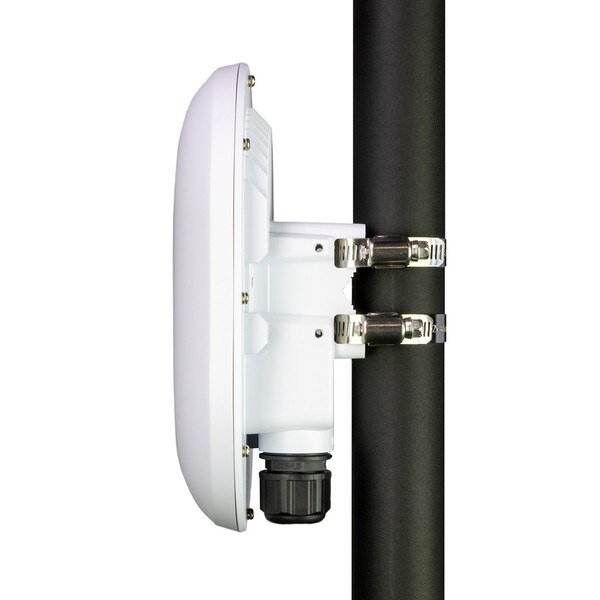

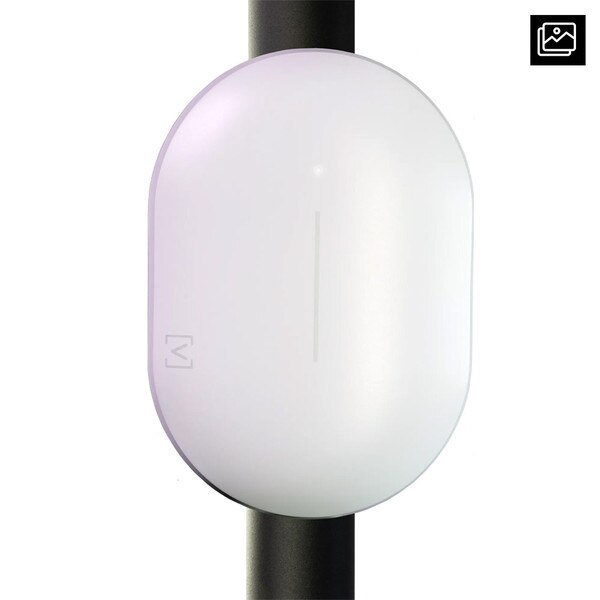

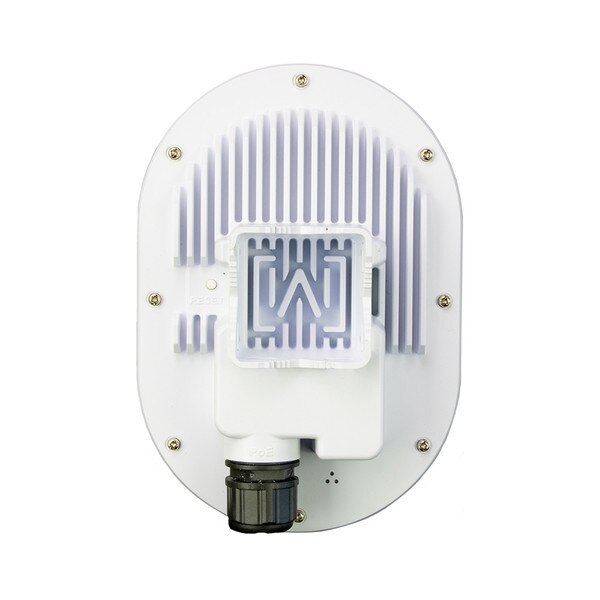

The AP6-Pro Outdoor is an omnidirectional WiFi 6 access point, providing coverage in all directions. The front design is similar to our elegant indoor access points but the back features a built-in pole mount. A wall-mount adapter is also included for easy installation on an exterior wall. The AP6-Pro Outdoor is powered over Ethernet for simple, clean installation. The AP works with the Alta Management platform and the Alta Networks mobile app for easy management and configuration from anywhere in the world
Outdoor Access Point
Alta Labs Cloud Management Platform: Web
Features
- IP68 for Optimal Weatherproof Protection
- 5 GHz: 4x4, DL/UL MU-MIMO, 2.4 GHz 2x2 DL/UL MU-OFDMA
- WiFi 6 With WiFi 7 Benefits
- Superior Range and Performance
- Omnidirectional + Mesh Connectivity
- AltaPass™ Multi-Password Technology
- Scalable Cloud-Based Management
- Mobile App
- DPI Engine
- Hotspot Functionality
- On-The-Fly Changes and Scanning
- SSID Broadcasting Flexibility
Specifications
| Specifications for: ALT-AP6-PRO-OUTDOOR: Alta Labs AP6 Pro Outdoor WiFi 6 4x4 Cloud Managed Ceiling/Wall Indoor Access Point | |
|---|---|
| Mechanical | |
| Dimensions | 210 x 150 x 90 mm (8.3 x 5.9 x 3.5") |
| Weight | 0.9 kg (1.9 lbs) |
| Mount Material | Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
| Wall Mount Material | Galvanized Steel |
| Weather Proofing | IP68 |
| Hardware | |
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (1) GbE RJ45 Port |
| Button(s) | Reset / Factory Reset |
| LED | Blue, White |
| Power Method | PoE+ |
| Power Supply | PoE+ enabled network switch 48V, 0.5A PoE adapter (optional) |
| Supported Voltage Range | 42.5 - 57V DC |
| Power Consumption | 25W Max, 7 - 15W Typical @ 23° C (73° F) |
| Maximum Transmit Power | 2.4 GHz: 23 dBm @2NSS, 5 GHz: 26 dBm @4NSS |
| MIMO | 5 GHz: 4 x 4, DL/UL MU-MIMO, DL/UL MU-OFDMA |
| 2.4 GHz: 2 x 2. DL/UL MU-OFDMA | Explicit TX beam-forming |
| Throughput Rate | 2.4 GHz: Up to 573 Mbps, 5 GHz: Up to 5.8 Gbps |
| Antenna Gain | 2.4 GHz: Up to 3.3 dBi, 5 GHz: Up to 4.3 dBi |
| Mounting | Pole mount, wall mount |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi Standards | 801.11a/b/g/n/ac/ax, WiFi4/WiFi5/WiFi6 |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA2-PSK, WPA3-PSK, WPA-Enterprise (WPA2/WPA3) |
| Multi-BSSID | Supported |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 350 |
| Zero Wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Painless Hotspot Setup | Yes |
| Scale From Home to SMB to Stadium | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| Supported Data Rates | |
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (Up to MCS 31) |
| 802.11ac | 6.5 Mbps to 3.4 Gbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 5.8 Gbps (Up to MCS 13) |
