Alta Labs 24 Port Gigabit POE+ Switch w/ 2 Gig SFP+ Uplink
Details
Details
Summary
- Total Ports: 24
- PoE+ Ports: 16
- PoE Budget: 240
- SFP/SFP+: Up to 10 Gbps
- Bluetooth: Yes
Overview

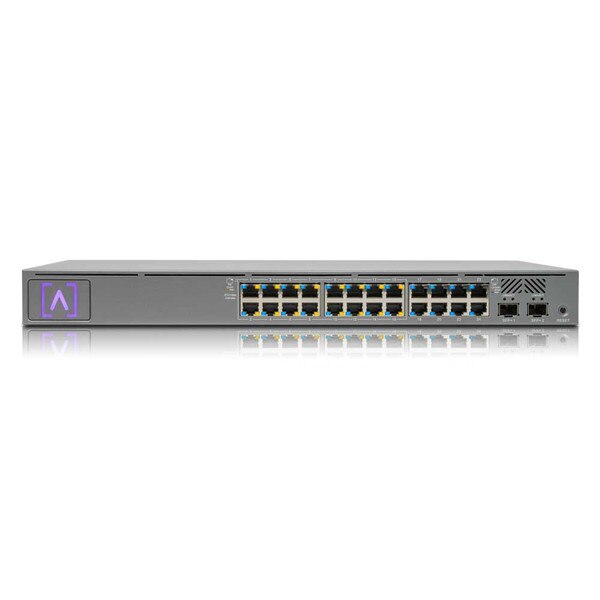

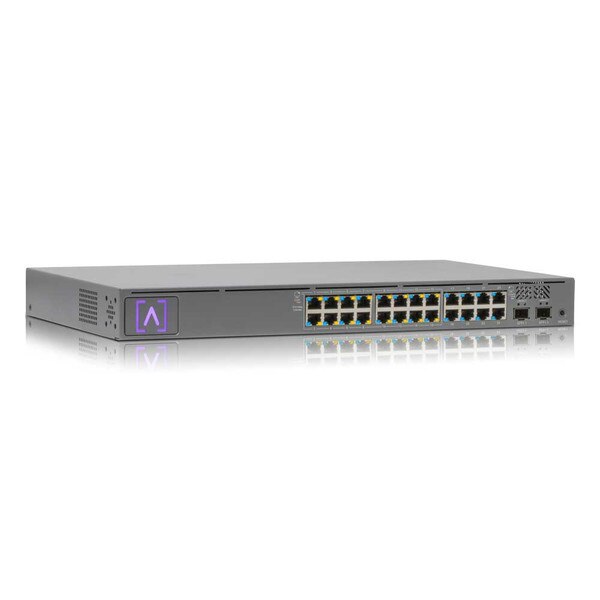

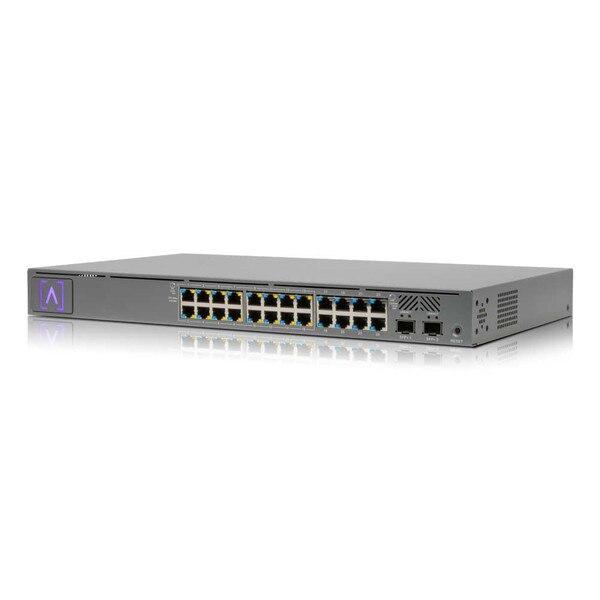

Alta Labs PoE+ Gigabit switches are designed to meet various needs ranging from an enterprise environment to the small office/ home office. The S24‐PoE is a rackmountable switch with twenty‐four 10/100/1000 ports sixteen of which support PoE+. The S24‐PoE includes two SFP+ ports. All of the Alta Labs switches include Bluetooth functionality for seamless device setup.
Features
- Power Over Ethernet
- SFP/SFP+ High Performance Connectivity Bluetooth Setup
- Mobile App
- Scalable Cloud‐Based Management
- VLAN Stacking
- Egress and Ingress Rate Limiting
- IGMP Snooping*
- 802.1X Authentication*
- Network Loop Detection*
- Customizable Dashboard
- Status Snapshots
- Device Cards
- Site Manager
- Mounting Flexibility
- More Features to Come with Automatic Firmware Updates
* Coming Soon via future firmware release
Specifications
| Specifications for: ALT-S24-POE: Alta Labs 24 Port Gigabit POE+ Switch w/ 2 Gig SFP+ Uplink | |
|---|---|
| MECHANICAL | |
| Dimensions | 44 x 254 x 441.5 mm (1.7 x 10 x 17.4") |
| Weight | 3.6 kg (7.9 lbs) |
| Material Type | SGCC |
| Material Finish | Powered coat – Matte |
| Color | Metallic grey |
| PORTS | |
| Interface ports | (24) 10/100/1000 Mbps |
| SFP/SFP+ | (2) SFP+ |
| Switching Capacity | 88 Gbps |
| Non‑blocking Throughput | 44 Gbps |
| Forwarding Rate | 65.5 Gbps |
| PoE Budget/Max | 240 Watts |
| PoE Supply | 30 Watts per port |
| Per Port PoE | (16) 802.3at PoE+ |
| Non‑PoE Ports | (10) |
| LEDS | |
| PoE | Orange |
| Network | Orange: 10/100 Mbps, Blue: 1000Mbps |
| SFP | Blue: Link/Activity (1, 2.5, or 5 Gbps) White: Link/Activity (10 Gbps) |
| HARDWARE | |
| Packet Buffer | 12 Mbit SRAM |
| MAC Table Size | 16 K |
| Energy Efficient Ethernet | Yes |
| Management | Factory reset button |
| Bluetooth | Yes, Setup |
| POWER | |
| Max Power Consumption w/o PoE | 53 Watts |
| Max Power Consumption Full PoE | 295 Watts |
| Output | PoE+, 54VDC, 0.6A Max. |
| Power Supply | Universal AC, 100 ‑ 240VAC 50‑60Hz External |
| RJ45 Port Surge Protection | 12kV for ESD ‑ contact, 25kV for ESD ‑ Air |
| ENVIRONMENTAL | |
| Mounting | Rackmount, Wallmount |
| Operating Temperature | ‑5 to 50° C (23 to 122° F) |
| Operating Humidity | 10 to 90% Noncondensing |
| IP Rating | None |
| EMI Rating | EMI Class‑B with 3dB margin |
| Cooling Fan | Yes |
| Certifications | CE, FCC, IC |
