Ilsintech Splice On Connector LC Simplex OM4 UPC 900 micron SA Type
Details
Details
Summary
- In accordance with IEC61754-20, TIA/EIA604-10-A
- Corresponding Telcordia GR-326-core
- Enhanced high quality with improved optical features (Insertion Loss & Return Loss)
- Enhanced & Improved high tensile strength (exceeding 60N).
- Satisfy Vertical Burning Test. Materials Compliant with UL94V-0

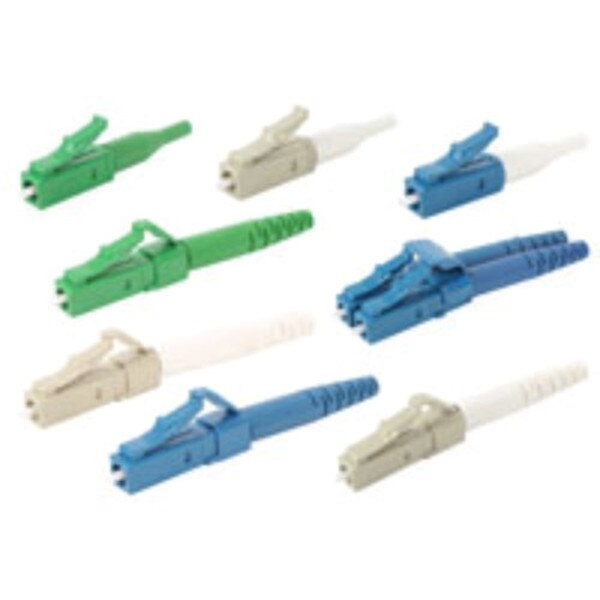

- Housing Color : SM-UPC(Blue), SM-APC(Green), MM(Beige)
Applications
- Medium and long range optical transmission circuit, LAN, CATV, FA, OA
- PC transmission system, measuring tools, etc.
- FTTx Network
Features
- Factory installed fiber stubs using high quality fiber provide verified performance
- Factory polished and inspected ferrule end faces ensure optimum fiber optic connectivity and easy termination
- Enhanced high tensile strength for improved field terminations
- FOCIS compliant connector interfaces
- Internal testing to verify performance and compliance with Telecordia GR-326 and EIA-568
- Ideal for use in high density medium and long-range optical transmission circuts for FTTH, LAN, CATV, data center and passive optical LAN
- Swift 25-year warranty available
Specifications
| Specifications for: IL-LCS-OM4-UPC-09-SA: Ilsintech Splice On Connector LC Simplex OM4 UPC 900 micron SA Type | |
|---|---|
| Item | Multi-mode Ultra Physical Contact (UPC) |
| Fiber | OM4 |
| Insertion Loss | ≤ average 0.2dB (≤ max 0.3dB) |
| Return Loss | ≥ 60dB |
| Tensile Strength | 40 for 0.9mm, 2.0mm Fiber |
| Repeating Operation Test | 500 Cycle, ≤ 0.2dB |
| Temperature Range | -40°C ~ 85°C |
| Cable | 0.9mm, 2.0mm cable |
