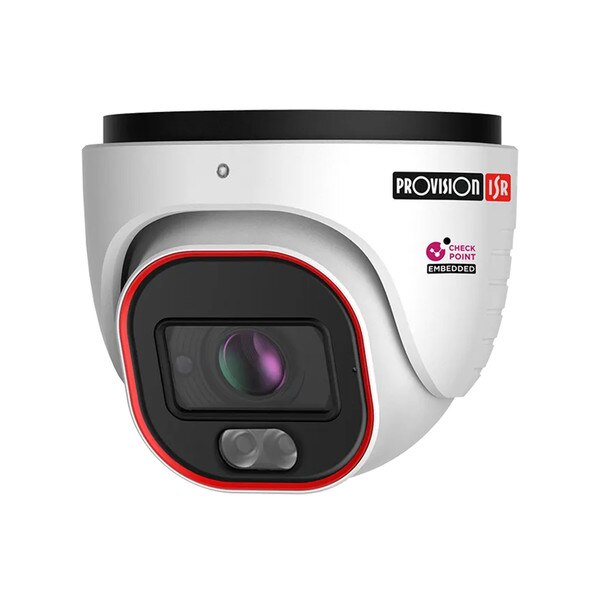

Provision-ISR 4MP Turret S-Sight Hybrid Active Deterrence IP Fixed 2.8mm Lens w/ 30M IR and DDA Analytics Camera – White
Details
Details
4MP Turret Fixed Lens w/ 30M IR Camera
*Uses the JB14 Backbox Series*
Active deterrence cameras are designed to deter unwanted visitors by activating visual and audio alerts. Equipped with a 2.8mm lens, this 4MP Dome/Turret camera is intended for short-distance surveillance (up to 30m) in indoor and outdoor scenarios. With its hybrid capability, the white LED will enlighten the scene when humans being detected for full color image even in dark scenarios. The camera offers outstanding DDA Analytics (Detect, Distinguish, Alert), which can perform human and vehicle recognition. With various detection rules and triggers. This model complies with NDAA demands and ensures your device is cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime. With its outstanding performance, reliability, and affordable price, the DH-340ADSN-28 camera is the perfect solution for any simple IP installation.
- DH-340ADSN-28 4MP Active Deterrence Fixed Lens Dome/Turret Camera with Hybrid LED and DDA1 Analytics
- Sensor: 1/3″ CMOS (16:9)
- Resolution: 2560×1440 25/30FPS (4MP)
- Lens: 2.8mm (94°) ICR + 24/7 Full-Color Day Mode
- Illumination: 30m (1 High-Power IR LED) + 30m (1 High-Power White LEDs) + Red/Blue Strobe Lights
- Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
- Quantum IoT Nano agent by Check Point™
- General Analytics: Camera Tampering, Item Monitoring
- AI (Object Recognition): DDA Sterile Area, DDA Line Crossing
- True WDR (120dB), BLC, HLC, ROI
- SD Card: Event/Schedule Record (Up to 256GB)
- Built-in Microphone and Speaker + Audio Input / Output
- ONVIF: Profile M/T/S/G
- Water Proof: IP66
- Weight: ~720g
- Power: DC12V/~700mA / PoE/~10.5W
| Specifications for: PV-DH-340ADSN-28: Provision-ISR 4MP Turret S-Sight Hybrid Active Deterrence IP Fixed 2.8mm Lens w/ 30M IR and DDA Analytics Camera – White | |
|---|---|
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Image Sensor | 1/3" CMOS (16:9) |
| Effective Pixels | 2560x1440 |
| Electronic Shutter | 1s ~ 1/100000s |
| Day & Night | ICR + 24/7 Full-Color Day Mode |
| Min. Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with illumination on |
| Audio | |
| Audio compression | G.711A/G.711U |
| Communication | Two-Way Audio |
| Image | |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip, Corridor Mode |
| Privacy Zone | Yes |
| Events and Analytics | |
| Analytics | General Analytics: Camera Tampering, Item Monitoring AI (Object Recognition): DDA Sterile Area, DDA Line Crossing |
| Motion Detection | Yes |
| Compression | |
| Resolution | 4MP (2560x1440) / 3MP (2304x1296) / 2MP (1920x1080) / 1MP (1280x720) / D1 / VGA / QVGA /CIF |
| Frame Rate | 1-25/30FPS |
| Video Compression | H.265+/ H.264+ / H.265 / H.264 / MJPEG** |
| Multi-Stream | Master Stream: 4MP (2560x1440) / 3MP (2304x1296) / 2MP / 1MP (1~30fps) Substream: 1MP/D1/VGA/CIF (1~30fps) Third Stream: D1/QVGA/CIF (1~30fps) |
| Bit Rate | 64Kbps ~ 6Mbps |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens | |
| Lens (Field of View) | 2.8mm (94°) |
| Iris | Fixed Iris |
| Lens Mount | M12 Mount |
| Detect | 62m(203ft) |
| Recognize | 12m(40ft) |
| Identify | 6m(20ft) |
| Network | |
| User Access | Supports simultaneous monitoring of up to 4 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin |
| Ethernet | 100Mbps |
| ONVIF | Profile M/T/S/G |
| Connectivity | |
| Network | RJ45 (+PoE) |
| Audio Connectivity | Built-in Microphone and Speaker + Audio Input / Output |
| Alarm | No |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand | N/A |
| Power | DC Socket |
| Analog Video Output | No |
| Housing | |
| PoE | Yes |
| Illumination | 30m (1 High-Power IR LED) 30m (1 High-Power White LEDs) Red/Blue Strobe Lights |
| Power Supply | DC12V/~700mA / PoE/~10.5W |
| Protection Rate | Water Proof: IP66 |
| Work Environment | -30°C~60°C, 10%~95% Humidity |
| Bracket | 3-Axis Bracket |
| Dimensions | ø 111.5 x 99.6mm |
| Weight (gross) | ~720g |
| Hard Reset Button | Yes |
