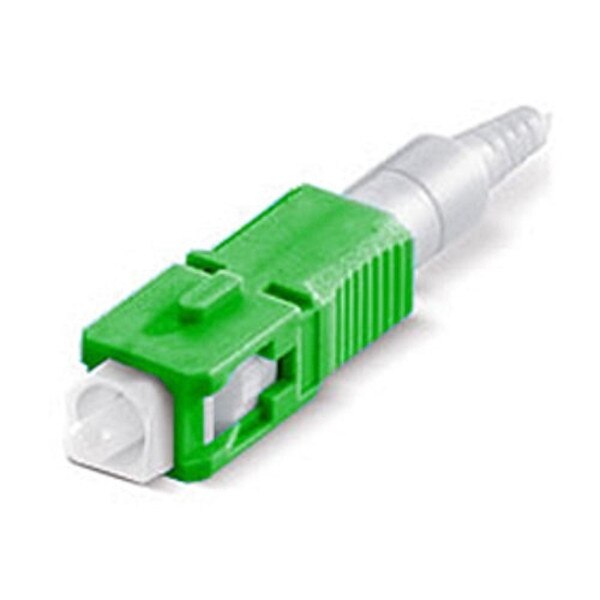

Senko SC Connector SM APC 250/900um – 12pc pkg (Green)
Details
Details
Summary
XP FIT PLUS SC Connector – Green
Overview
The XP Fit Plus is a pre-polished, pre-assembled connector compatible with the standard SC connector. In place of epoxy, an internal mechanical grip gently but effectively holds the fiber in place and can be installed in under two minutes. Without polishing or adhesives, the XP Fit Plus makes field installations quick and easy, eliminating the need for epoxy curing and hand polishing at the work site.
Specifications
| Specifications for: SE-318-091-427: Senko SC Connector SM APC 250/900um – 12pc pkg (Green) | ||
|---|---|---|
| Specification | Singlemode | Multimode |
| For XP Fit Plus SC | Typical | |
| Insertion Loss | 0.2dB (PC) and 0.3dB (APC) | 0.1dB |
| Return Loss | 55dB (PC) 60dB (APC) | 35dB |
| Durability | <0.1dB change, 500 matings | |
| Operating Temperature | -40°C to +75°C | |
| Tensile | TIA/EIA 568-C.3 | |
| Intermateability | IEC 61754-4 | |
