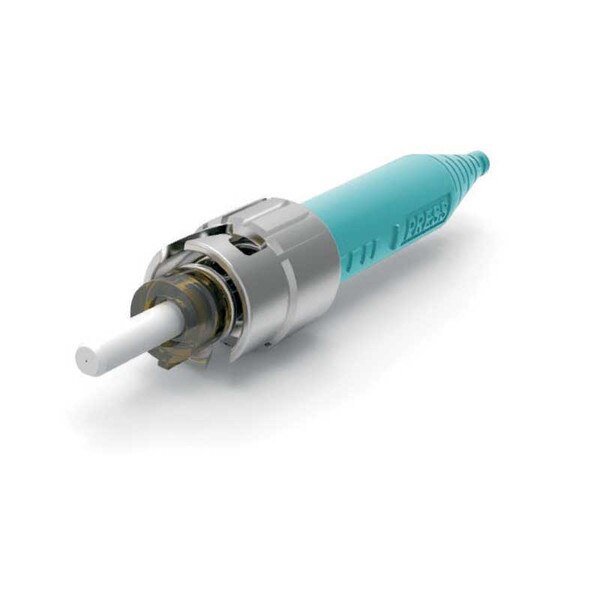

Senko ST Connector MM 50/125 10G OM3 250/900um – 12pcs pkg (Aqua)
Details
Details
Overview
The ST Premium connector is a legacy metal body bayonet style connector available in single-mode and multimode, generally found in older LAN and campus environments.
- Rugged bayonet mounting
- Premium quality ferrule for low loss
- Metal body for enhanced durability
Specifications
| Specifications for: SE-352-491-2-12: Senko ST Connector MM 50/125 10G OM3 250/900um – 12pcs pkg (Aqua) | |
|---|---|
| Typical Insertion Loss (dB) | 0.15 |
| Max Insertion Loss (dB) | 0.30 |
| Typical Return Loss (dB) | ≥25 |
| Operating Temperature (°C) | – 40° C to +75° C |
| Durability | <0.1dB typical change, 500 matings |
| Ferrule Ø | 127μm |
