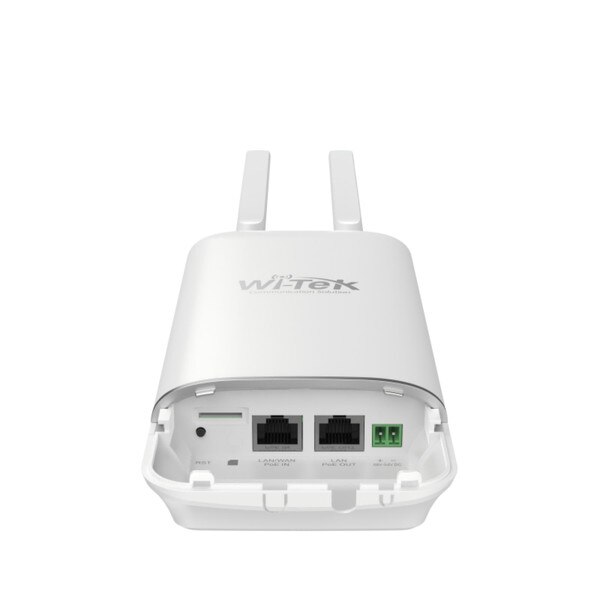

Wi-Tek 300Mbps Wireless 4G LTE Outdoor PoE Router
Details
Details
Features
- 4G Cat4 150 DL/50 UL Mbps
- 2 x 10/100Mbps Ethernet Ports
- 802.3at PoE Input or 48-54V DC IN for Flexible Power Supply
- Up to 2*802.3af PoE Out
- 300Mbps at 2.4GHz
- IP65-rated Ingress Protection
- Failover and Network Backup
- Support SD-LAN technology
- Support cloud and Web management
Specifications
| Specifications for: WI-LTE-117-0: Wi-Tek 300Mbps Wireless 4G LTE Outdoor PoE Router | |
|---|---|
| Hardware Features | |
| Memory | 128MB RAM, 16MB Flash |
| Interface | 1×10/100Mbps RJ45 LAN/WAN PoE IN port 1×10/100Mbps RJ45 LAN PoE Out port 1×Micro SIM 3FF |
| Power Supply | DC 48–54V/2A or 802.3at PoE IN |
| PoE Output | If DC IN: 2×48–54V 802.3af PoE output ports If PoE IN: 1×802.3af PoE output port |
| Power Consumption (max) | <12W |
| IP Level | IP65 |
| 3G/4G MODEMS | |
| LTE Category | CAT.4 (150Mbps Downlink, 50Mbps Uplink) |
| Supported Bands | EU: LTE FDD: B1/B3/B5/B7/B8/B20/B28; LTE TDD: B38/B40/B41; WCDMA: B1/B5/B8; GSM: B3/B8 CN: LTE FDD: B1/B3/B5/B8; LTE TDD: B34/B38/B39/B40/B41; WCDMA: B1/B5/B8; GSM: B3/B8 LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66; LTE TDD: B40; WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8 NA: FDD-LTE: B2/B4/B5/B12/B13/B14/B66/B71; WCDMA: B2/B4/B5 |
| 4G Antenna | 5dBi |
| Wireless Features | |
| Standards | IEEE 802.11b/g/n |
| Data Rates | IEEE 802.11b: up to 11Mbps IEEE 802.11g: up to 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbps |
| MIMO | 2x2 |
| Wi-Fi Antenna | Built-in 5dBi antenna |
| Frequency | 2412~2484 MHz *Please follow national regulations to select the appropriate frequency. |
| Channel Width | 20/40MHz |
| Transmit Power | 20dBm (country dependent) |
| Software Features | |
| Wireless Mode | 4G Router, SOHO Router, Eth-First Router, 4G-First Router |
| Network | LAN: Static IP, Dynamic IP WAN: Static IP, Dynamic IP, PPPoE Client DHCP: DHCP Server, Static Leases Static Routes |
| 4G Network | 4G Internet Connection: APN, PIN, Authentication Type 4G Info: SIM Card, Band, IMEI, IMSI, Network Type 4G band selection |
| Wireless | Wireless Disable or Enable Modify default SSID SSID Hiding Adjustable Country Auto Channel Width Selection Automatic Frequency Selection Adjustable Transmission Power User Isolation (default: disabled) Supports WMM Security: WPA-TKIP, WPA2-AES, WPA1/WPA2-Mixed |
| Advanced | Open VPN server/client Dynamic DNS Firewall: Port Forwards, Traffic Rules, NAT Rules |
| Management | Quickly scan devices by discovery tools Web-based local management Support remote management by cloud platforms and applications |
| Environment | |
| Environment | Operating Temperature: -30°C~55°C (-22°F~131°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~95% (non-condensing) Storage Humidity: 10%~95% (non-condensing) |
| Others | |
| Certification | CE, FCC, RoHS, UKCA, RCM |
| Dimensions (Including Antennas) | 349×84×41mm |
| Weight | 0.22kg |
