Wi-Tek 5GHz 300Mbps 5km Long range outdoor wireless transmitter
Details
Details
Features
- 6 100/1000Mbps RJ45 Ethernet ports, 2 100/1000Mbps RJ45 Uplink ports
- Plug and play, zero configuration
- Supports desktop or wall mount
- Smart DIP Switch: Port VLAN mode, Extend mode
- Silent operation ideal for noise-sensitive environment
Specifications
| Specifications for: WI-CPE513P-KIT: Wi-Tek 5GHz 300Mbps 5km Long range outdoor wireless transmitter | |
|---|---|
| Feature | Details |
| Interface | 1 × 10/100Mbps WAN (PoE IN) RJ45 port, 1 × 10/100Mbps LAN (PoE Out) RJ45 port |
| Frequency Range | 5.150 ~ 5.850GHz (Channel 36~64, 100~144, 149~165). *Please follow national regulations to select the appropriate frequency. |
| Compliant Standards | IEEE 802.11a/n |
| Spatial Streams | 2x2, MU-MIMO |
| Maximum Wireless Rate | 300Mbps @ 5GHz |
| Antenna Gain | Built-in 15dBi directional antenna |
| Half Power Beamwidth (Typ.) | Horizontal: 30°, Vertical: 30° |
| Transmit Power (Typ.) | 24±2dBm max. (adjustable) |
| Recommended Distance | 5km |

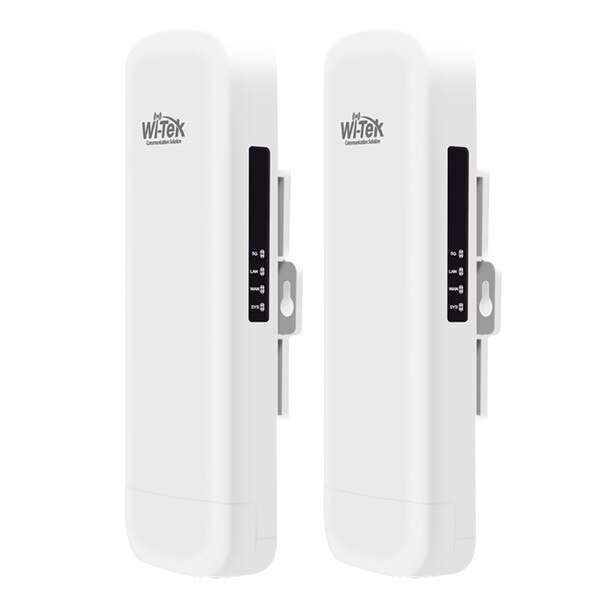

| LED Indicator | 1 × SYS (System), 1 × WAN, 1 × LAN, 1 × 5G indicator |
| DIP Switch | H: Base station mode, supports point-to-point and point-to-multipoint long-distance transmission; C: CPE mode, receiving point for connecting to a wireless base station |

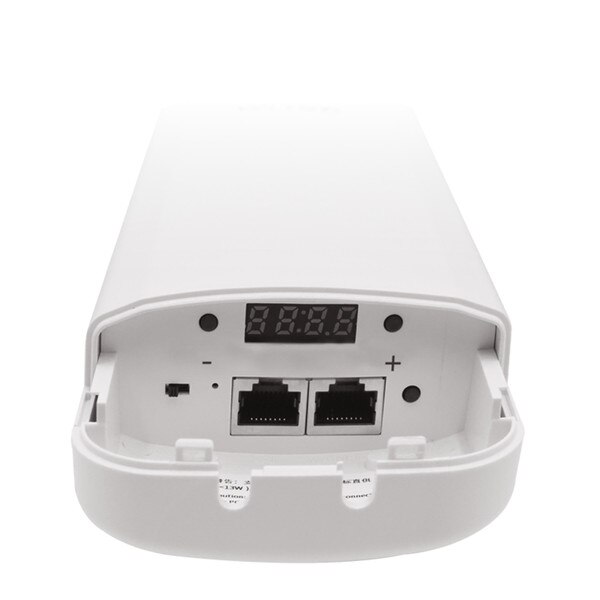

| LED Display | Displays current working mode and pairing group number |
| Quick Pairing Function Button | “+” button: Hold for 3 seconds to enable pairing group adjustment; when LED display blinks, press to increase group number. “−” button: When LED display blinks, press to decrease group number |
| RST Button | Hold for 5 seconds: Restore factory default settings |
| Power Supply | IEEE 802.3at PoE IN |
| Power Consumption | <9W (Without PoE Out) |
| Dimensions | 260 × 88 × 56 mm |
| Weight | 0.40kg × 2 |
| Package Dimensions | 340 × 218 × 98 mm |
| Package Weight | 1.6kg |
| Installation | Wall / Pole mounted |
| Material | Outdoor UV stabilized plastic |
| ESD Protection | Air discharge: ±8kV, Contact discharge: ±4kV |
| Lightning Protection | 4kV |
| Operating Environment | -40°C to 70°C, 5%~95% (non-condensation) |
| Storage Environment | -40°C to 85°C, 5%~95% (non-condensation) |
| Ingress Protection | IP65 |
