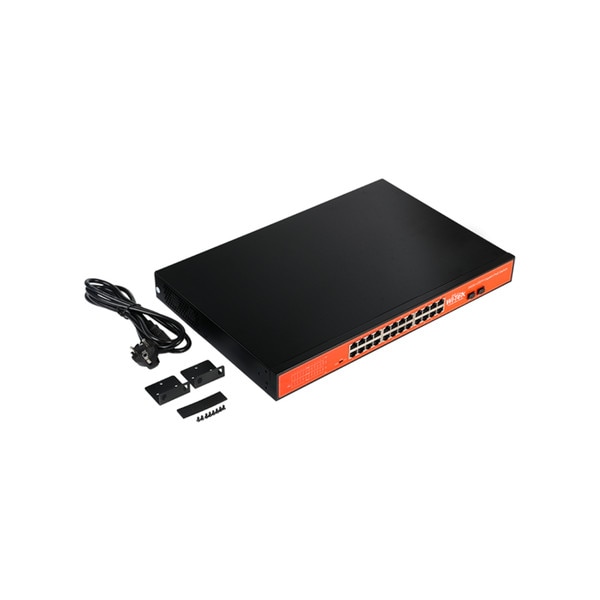

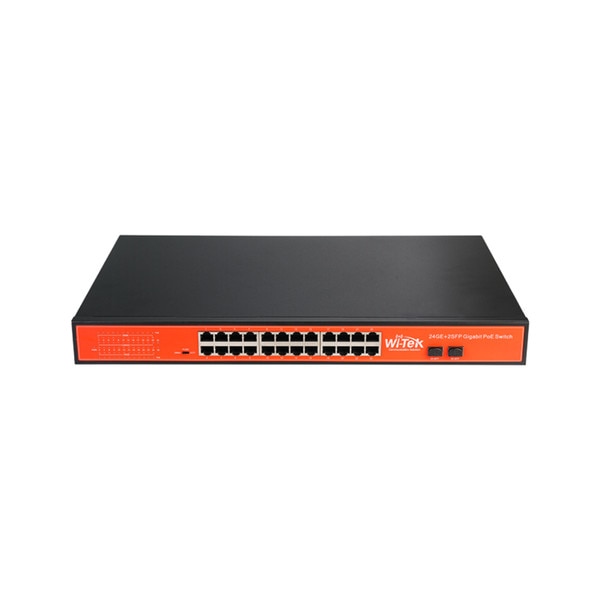

Wi-Tek 24 Port Gigabit PoE Switch
Details
Details
Features
- 24 10/100/1000Mbps RJ45 PoE Ports
- 2 1000Mbps SFP Slots
- 802.3af/at PoE+ output with 400W power budget
- Smart DIP Switch: Port VLAN mode, Port CCTV (QoS) mode
- Plug and play, zero configuration
Specifications
| Specifications for: WI-PS326GF: Wi-Tek 24 Port Gigabit PoE Switch | |
|---|---|
| Downlink Ports | 24 1000Mbps RJ45 PoE ports |
| Uplink Ports | 2 1000Mbps SFP slots |
| PoE Port | Port 1–24 |
| PoE Standard | 802.3 af/at |
| PoE Power Supply Type | End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power | 30W max. for each port, 388W max. for PoE power budget |
| Standards and Protocols | IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3z Gigabit Ethernet over Fiber |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | 38.69 Mpps |
| MAC Address Table | 8k |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 9 kB |
| Input Power | AC 100–240V 4.5A |
| Power Consumption | Idle: 12W, 100% traffic rate with PoE: 400W |
| LED Indicators | PWR: On: The device power on is normal; Off: The device is power off or failed. PoE: On: PoE is working; Off: PoE not working. Link/Act: On: Data on TX/RX; Off: Ports link down. 1000M: On: The negotiated speed is 1000Mbps and ports link up; Off: The negotiated speed is 10/100Mbps, not 1000Mbps |
| Fan Quantity | 2 |
| Dimensions | 440 × 291 × 44 mm |
| Weight | Net Weight: 3.21 kg; Package Weight: 4.005 kg |
| Installation | Rack-mounted, Desktop |
| DIP Switch | Default / VLAN / CCTV (QoS) |
