Provo Home Control 22-2c Low Cap STR BC FL SH + 18-2c STR BC UNSH CSA CMG FT4 UL RoHS – Green w/Yellow Stripe JKT
Details
Details
Summary

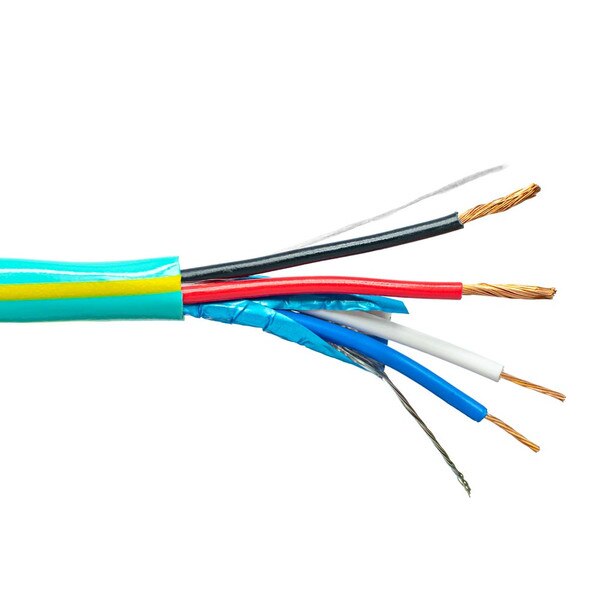

- 22awg Low-Cap, 100% Aluminium Foil Shield 2 Conductors (1 Pair)
- 2c 18awg Power
- Stranded Bare Copper Conductors
- 22-2c: HDPE Insulation
- 18-2c: PVC Insulation
- Low-Loss Foam Dielectric (Data Pair)
- FT-4 PVC Jacket – Green w/Yellow Stripe
- 2c 22awg Stranded Shielded (Blue/White)
- 2c 18awg Stranded Unshielded (Black/Red)
- Tinned Copper Drain Wire
Specifications
| Specifications for: 1348: Provo Home Control 22-2c Low Cap STR BC FL SH + 18-2c STR BC UNSH CSA CMG FT4 UL RoHS – Green w/Yellow Stripe JKT | |
|---|---|
| Conductors | 2c 2c |
| Gauge (AWG) | 22 18 |
| Conductor Type | 2c 7x30 Stranded Bare Copper 2c 7x0.0152 Stranded Bare Copper |
| Shielding | 2c Aluminium Foil Shielded 2c Unshielded |
| Drain Wire | Tinned Copper |
| Insulation Type | 22-2c: HDPE 18-2c: PVC |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.215 |
| Weight (lb) | 38/19 |
| Flame Test Rating | FT-4 |
| Voltage | 300 |
| MHz | na |
| Temperature | -2 to 75 °C |

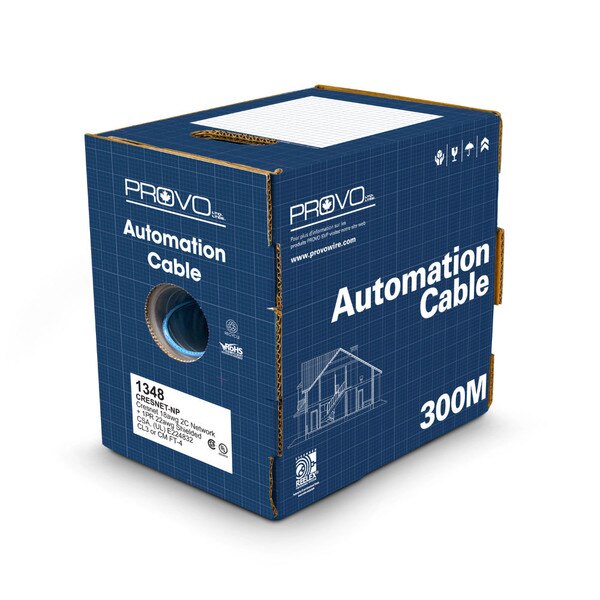

| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | na |
| Category | Home Control FT-4 |
