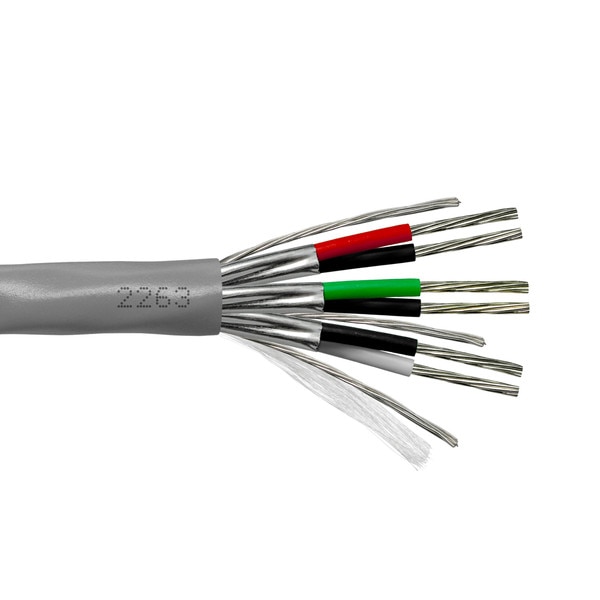

Provo Multi-Pair 22-3pr STR TC IND FL SH 80° C CSA FT4 UL RoHS – Grey JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- Twisted Pairs
- Polypropylene Insulation
- Each Pair 100% Alum. Foil Shield
- Each Pair Tinned Copper Drain Wire
- FT-4 PVC Jacket – Grey
- -20° C +80° C
- Colour Code: Chart Number 3
Specifications
| Specifications for: 2263: Provo Multi-Pair 22-3pr STR TC IND FL SH 80° C CSA FT4 UL RoHS – Grey JKT | |
|---|---|
| Conductors | 3pr |
| Gauge (AWG) | 22 |
| Conductor Type | 7x30 Stranded Tinned Copper |
| Shielding | Ind. Shld Pairs: 100% Alum. Foil |
| Drain Wire | Stranded Tinned Copper For Each Pair |
| Insulation Type | Polypropylene |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.235 |
| Weight (lb) | 40/20 |
| Flame Test Rating | FT-4 |
| Voltage | 600 |
| MHz | na |
| Temperature | -20 to 80 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 3 |
| Category | Multi-Pair Individual Foil Shielded FT-4 |
