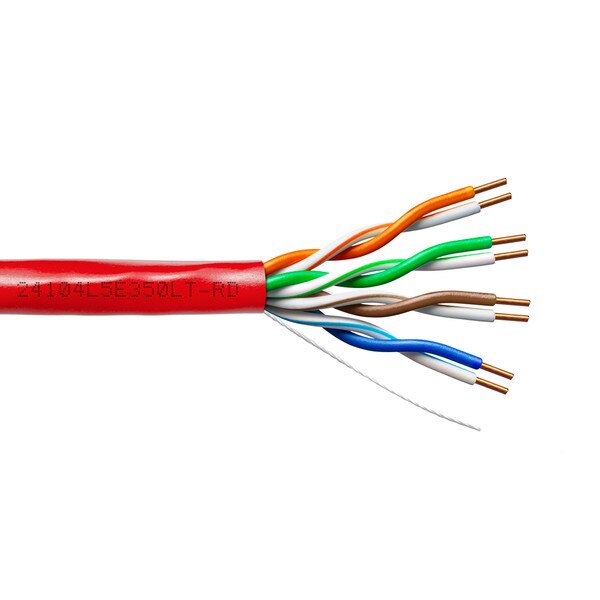

Provo CAT5E UTP Cable 24-4pr SOL BC UNSH 350MHz Low Temp CMR ETL FT4 RoHS – Red JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- Polyethylene Insulation – Ripcord
- Unshielded (UTP)
- 350Mhz
- Low Temp CMR PVC FT-4 Red Jacket
- Colour Code: Chart Number 5
Specifications
| Specifications for: 24104L5E350LT-RD: Provo CAT5E UTP Cable 24-4pr SOL BC UNSH 350MHz Low Temp CMR ETL FT4 RoHS – Red JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 24 |
| Conductor Type | Solid Bare Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | Polyethylene |
| Jacket Type | Flexible PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.200 |
| Weight (lb) | 20 |
| Flame Test Rating | CMR FT-4 |
| Voltage | 300 |
| MHz | 350 |
| Temperature | -40 to 75 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Cat5E 350Mhz Unshielded Low Temp FT-4 |
Resources
Download 24104L5E350LT-RD Spec Sheet
