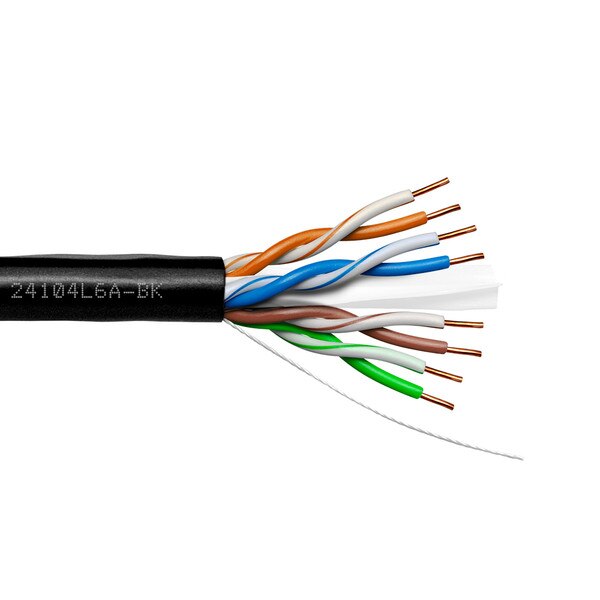

Provo CAT6A UTP Cable 23-4pr SOL BC UNSH 500MHz CMR ETL CSA FT4 UL RoHS – Black JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- Polyethylene Insulation
- No Shield UTP
- 500Mhz
- PVC FT-4 Black Jacket
- Colour Code: Chart Number 5
Specifications
| Specifications for: 24104L6A-BK: Provo CAT6A UTP Cable 23-4pr SOL BC UNSH 500MHz CMR ETL CSA FT4 UL RoHS – Black JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | Polyethylene |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 6.8 +/- 0.3 |
| Weight (lb) | 34 |
| Flame Test Rating | FT-4 |
| Voltage | na |
| MHz | 500 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Cat6A 500Mhz Unshielded FT-4 |
| Nominal Attenuation db/100ft. | |
|---|---|
| MHz | dB/100ft. |
| 1 | 0.64 |
| 5 | na |
| 10 | 1.798 |
| 30 | na |
| 50 | na |
| 100 | 5.82 |
| 200 | 8.41 |
| 400 | 12.22 |
| 500 | 13.80 |
| 700 | na |
| 900 | na |
| 1000 | na |
| 1200 | na |
| 1450 | na |
| 2400 | na |
Resources
Download 24104L6A-BK Spec Sheet
