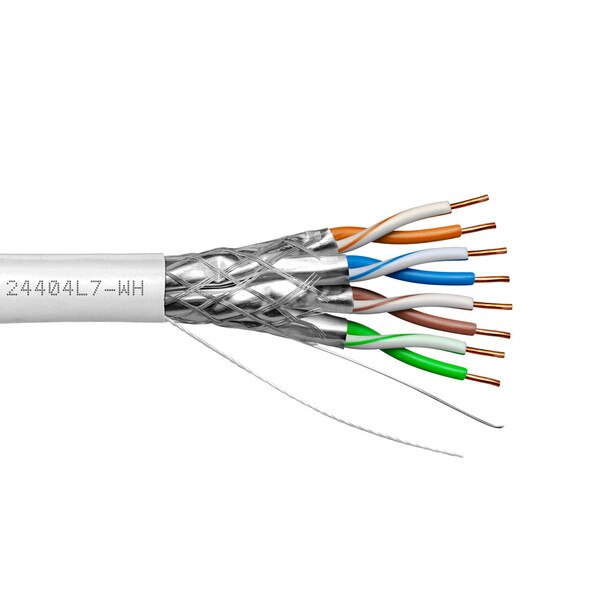

Provo CAT7 STP 23-4pr SOL BC IND FL SH + TC BRD SH 650MHz 10G CMR ETL CSA FT4 UL RoHS – White JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- Tinned Copper Braid
- Foam PE Insulation
- Shielded (S/FTP)
- Each Pair 100% Alum. Foil Shield
- Tinned Copper Drain Wire
- CMR FT-4 PVC Jacket – White
- -20° C + 75° C
- Colour Code: Chart Number 5
Specifications
| Specifications for: 24404L7-WH: Provo CAT7 STP 23-4pr SOL BC IND FL SH + TC BRD SH 650MHz 10G CMR ETL CSA FT4 UL RoHS – White JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | Ind. Shld Pairs: 100% Alum. Foil + Tinned Copper Braided 8x6x0.10 |
| Drain Wire | Stranded Tinned Copper |
| Insulation Type | Foam PE |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 7.80+/-0.30mm |
| Weight (lb) | 43 |
| Flame Test Rating | CMR FT-4 |
| Voltage | 300 |
| MHz | 650 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Multi-Pair Cat7 650MHz Individual Foil Shielded + TC Braid FT-4 |
