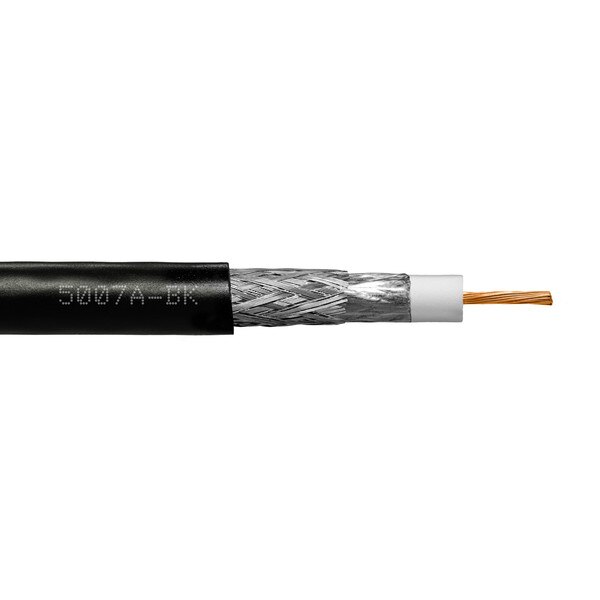

Provo RG8U Mini 16 AWG STR BC 95% BC BRD SH 50 ohms CSA FT4 UL RoHS – Black JKT
Details
Details
Summary
- 16awg Stranded Bare Copper Conductor
- Foam Polyethylene Dielectric
- 95% Braided Bare Copper Shield 50 Ohms
- FT-4 PVC Jacket – Black
Specifications
| Specifications for: 5007A-BK: Provo RG8U Mini 16 AWG STR BC 95% BC BRD SH 50 ohms CSA FT4 UL RoHS – Black JKT | |
|---|---|
| Conductors | 1c |
| Gauge (AWG) | 16 |
| Conductor Type | 19x29 Stranded Bare Copper |
| Shielding | 95% Bare Copper Braided |
| Drain Wire | na |
| Insulation Type | Foam PE Dielectric |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.242 |
| Weight (lb) | 48/24 |
| Flame Test Rating | FT-4 |
| Voltage | na |
| MHz | na |
| Temperature | na |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | na |
| Category | RG8U Mini FT-4 |
| Nominal Attenuation db/100ft. | |
|---|---|
| MHz | dB/100ft. |
| 1 | na |
| 5 | na |
| 10 | na |
| 30 | na |
| 50 | 2.8 |
| 100 | 4.0 |
| 200 | 5.3 |
| 400 | 9.0 |
| 500 | na |
| 700 | na |
| 900 | na |
| 1000 | na |
| 1200 | na |
| 1450 | na |
| 2400 | na |
