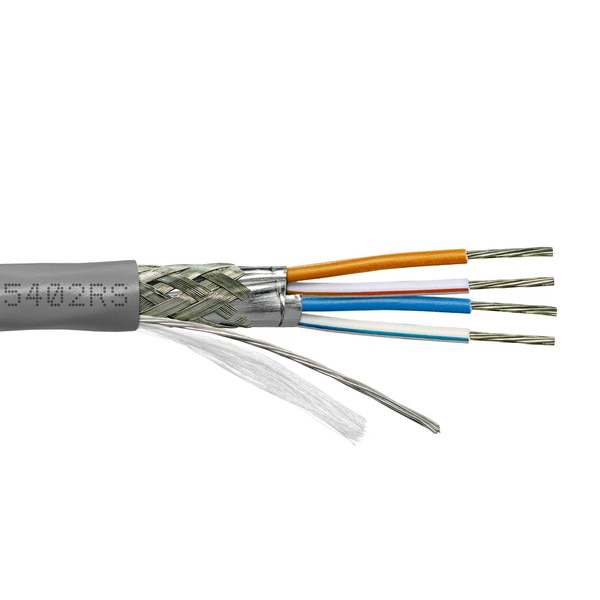

Provo Multi-Pair Low Cap 24-2pr STR TC 100% FL SH + 90% TC BRD SH RS485 75°C CSA FT4 UL RoHS – Grey JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- Twisted Pairs
- Polyethylene Insulation
- 100% Aluminum Foil Shield
- 90% Braided Tinned Copper Shield
- Tinned Copper Drain Wire
- FT-4 PVC Jacket – Grey
- -20° C +75° C
- Colour Code: Chart Number 5
Specifications
| Specifications for: 5402RS: Provo Multi-Pair Low Cap 24-2pr STR TC 100% FL SH + 90% TC BRD SH RS485 75°C CSA FT4 UL RoHS – Grey JKT | |
|---|---|
| Conductors | 2pr |
| Gauge (AWG) | 24 |
| Conductor Type | 7x32 Stranded Tinned Copper |
| Shielding | 100% Aluminium Foil Shielded 90% Braided Tinned Copper |
| Drain Wire | Stranded Tinned Copper |
| Insulation Type | PE |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.34 |
| Weight (lb) | 49 |
| Flame Test Rating | FT-4 |
| Voltage | 150 |
| MHz | na |
| Temperature | -20 to 75 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Multi-Pair Low Cap RS485 FT-4 |
