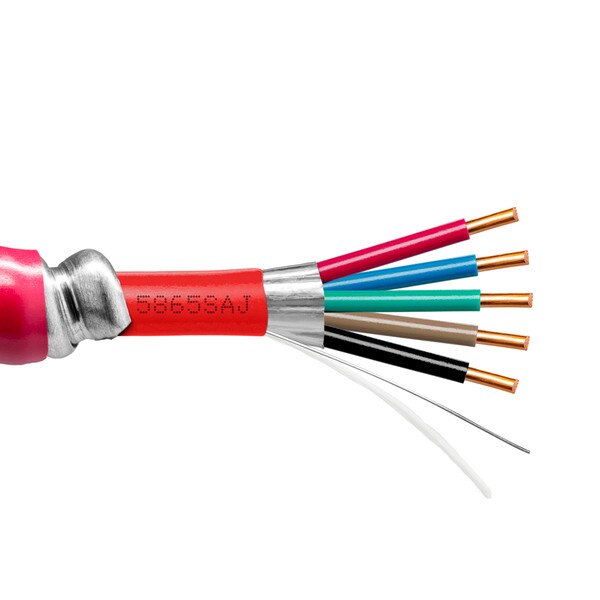

Provo Multi-Conductor Fire Alarm 16-5c SOL BC FL SH AIA OA JKT CSA FT4 UL RoHS – Red JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- PVC Insulation
- 100% Aluminum Foil Shield
- Tinned Copper Drain Wire
- FT-4 PVC Jacket – Red
- Aluminum Interlocked Armoured & Jacketed
- -20° C +105° C
- Colour Code: Chart Number 7
Specifications
| Specifications for: 5865SAJ: Provo Multi-Conductor Fire Alarm 16-5c SOL BC FL SH AIA OA JKT CSA FT4 UL RoHS – Red JKT | |
|---|---|
| Conductors | 5c |
| Gauge (AWG) | 16 |
| Conductor Type | Solid Bare Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Solid Tinned Copper |
| Insulation Type | PVC |
| Jacket Type | PVC |
| Armour | AIA |
| Armour O.D. | 0.482 |
| Nominal O.D. | 0.482 |
| Weight (lb) | 167/85 |
| Flame Test Rating | FT-4 |
| Voltage | 300 |
| MHz | na |
| Temperature | -20 to 105 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 7 |
| Category | Multi-Conductor Fire Alarm Foil Shielded AIA OA Jacket FT-4 |
