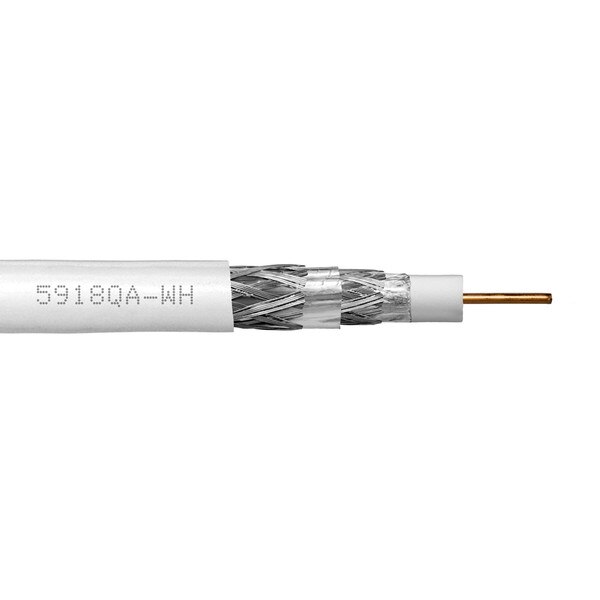

Provo RG6U 18 AWG SOL BC Quad Shield ( 2 X 100% FL SH + 1 X 60% Alum BRD SH + 1 X 40% Alum BRD SH) 3000 MHz CSA FT4 UL RoHS – White JKT
Details
Details
Summary
- 18awg Solid Copper Clad Steel (CCS) Conductor
- 100% Aluminum Foil Shield
- 60% Aluminum Braid Shield
- 100% Aluminum Foil Shield
- 40% Aluminum Braid Shield
- 3000 MHz – Foot Markers
- FT-4 PVC Jacket – White
Specifications
| Specifications for: 5918QA-WH: Provo RG6U 18 AWG SOL BC Quad Shield ( 2 X 100% FL SH + 1 X 60% Alum BRD SH + 1 X 40% Alum BRD SH) 3000 MHz CSA FT4 UL RoHS – White JKT | |
|---|---|
| Conductors | 1c |
| Gauge (AWG) | 18 |
| Conductor Type | Solid Copper Clad Steel (CCS) |
| Shielding | 2X100% Aluminium Foil Shield 1X 60% Aluminium Braided Shield 40% Aluminium Braided Shield |
| Drain Wire | na |
| Insulation Type | na |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.307 |
| Weight (lb) | 48 |
| Flame Test Rating | RG6U FT-4 |
| Voltage | na |
| MHz | 3000 |
| Temperature | na |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | na |
| Category | RG6U CATV Quad Shielded FT-4 |
| Nominal Attenuation db/100ft. | |
|---|---|
| MHz | dB/100ft. |
| 1 | na |
| 5 | na |
| 10 | 0.8 |
| 30 | na |
| 50 | 1.4 |
| 100 | 1.9 |
| 200 | 2.7 |
| 400 | 4.0 |
| 500 | na |
| 700 | 6.1 |
| 900 | na |
| 1000 | 7.4 |
| 1200 | na |
| 1450 | na |
| 2400 | na |
