Provo Door Access Control Cable 18-4c STR BC + 22-3pr STR BC FL SH + 22-1pr STR BC + 22-4c STR BC CSA FT4 UL RoHS – Unjacketed
Details
Details
Summary

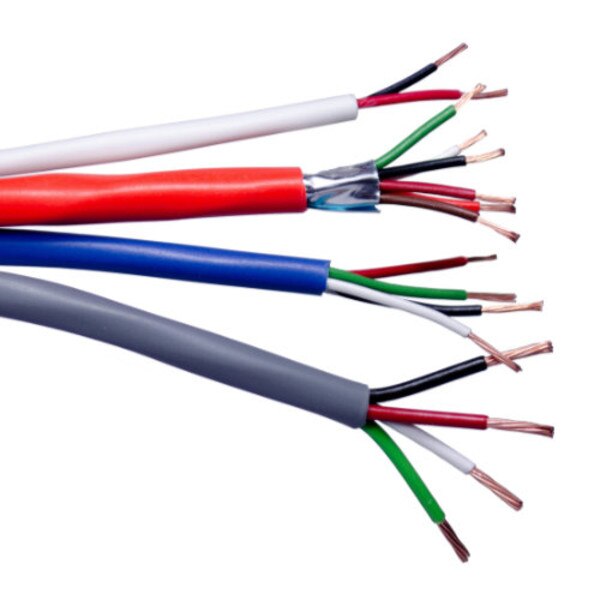

- Consists of:
- Orange – Card Reader – 3pair-22awg 100% F-Shld Stranded Bare Copper Conductors & Tinned Copper Drain Wire
- Blue – Station "Z" Wire – 4c-22awg Stranded Bare Copper Conductors
- Grey – Power Cable – 4c-18awg Stranded Bare Copper Conductors
- White – Door Contact – 1pair-22awg Stranded Bare Copper Conductors
- Insulation: SR PVC
- FT-4 – Unjacketed
Specifications
| Specifications for: 8915UJ: Provo Door Access Control Cable 18-4c STR BC + 22-3pr STR BC FL SH + 22-1pr STR BC + 22-4c STR BC CSA FT4 UL RoHS – Unjacketed | |
|---|---|
| Conductors | 16c |
| Gauge (AWG) | 4c-18awg 3pr-22awg 1pr-22awg 4c-22awg |
| Conductor Type | Stranded Bare Copper |
| Shielding | 4c-18awg – Unshielded 3pr-22awg – 100% Aluminium Foil Shielded 1pr-22awg – Unshielded 4c-22awg – Unshielded |
| Drain Wire | Tinned Copper for Card Reader |
| Insulation Type | SR PVC |
| Jacket Type | Unjacketed |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | na |
| Weight (lb) | na |
| Flame Test Rating | FT-4 |
| Voltage | 300 |
| MHz | na |
| Temperature | na |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | na |
| Category | Door Access Control FT-4 |
