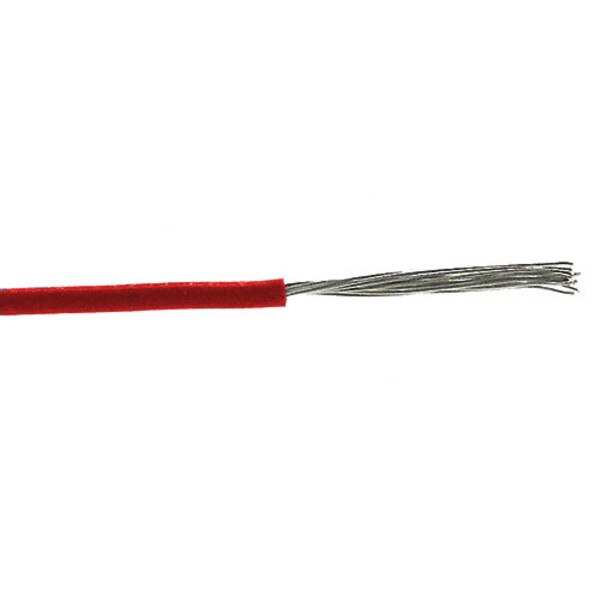

Provo TR64 16 AWG STR TC Style 1007 CSA UL RoHS – Red JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- PVC Insulation
- -20° C +80° C
- Stock Colour – Red
Specifications
| Specifications for: 92065-3: Provo TR64 16 AWG STR TC Style 1007 CSA UL RoHS – Red JKT | |
|---|---|
| Conductors | 1c |
| Gauge (AWG) | 16 |
| Conductor Type | 26x30 Stranded Tinned Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | PVC |
| Jacket Type | na |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.094 |
| Weight (lb) | 11 |
| Flame Test Rating | na |
| Voltage | 300 |
| MHz | na |
| Temperature | -20 to 80 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | na |
| Category | TR-64 |
