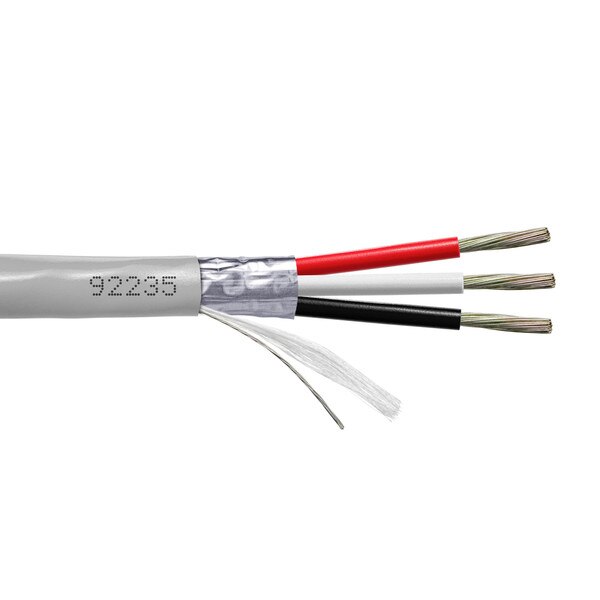

Provo Multi-Conductor 18-3c STR TC FL SH 105° C CSA FT4 UL RoHS – Grey JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- Conductors Twisted
- PVC Insulation
- 100% Aluminum Foil Shield
- Tinned Copper Drain Wire
- FT-4 PVC Jacket – Grey
- -20° C +105° C
- Colour Code: Chart Number 1
Specifications
| Specifications for: 92235: Provo Multi-Conductor 18-3c STR TC FL SH 105° C CSA FT4 UL RoHS – Grey JKT | |
|---|---|
| Conductors | 3c |
| Gauge (AWG) | 18 |
| Conductor Type | 16x30 Stranded Tinned Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Stranded Tinned Copper |
| Insulation Type | PVC |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.209 |
| Weight (lb) | 38/19 |
| Flame Test Rating | FT-4 |
| Voltage | 600 |
| MHz | na |
| Temperature | -20 to 105 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 1 |
| Category | Multi-Conductor Foil Shielded FT-4 |
