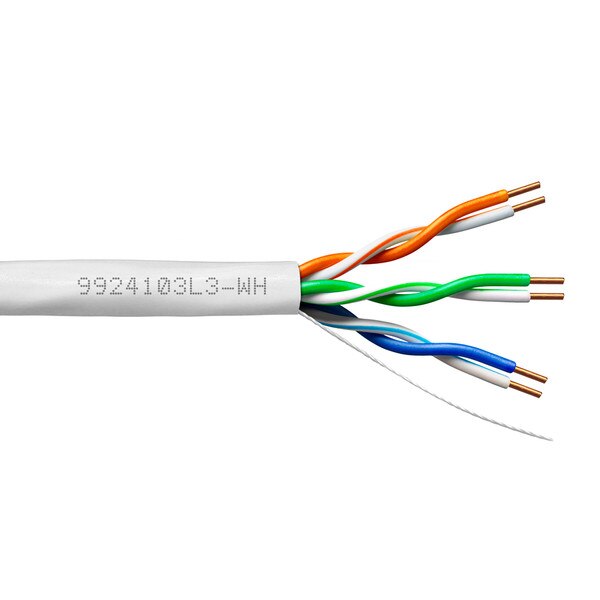

Provo CAT3 Telephone UTP Cable 24-3pr SOL BC UNSH CSA CMP FT6 UL RoHS – White JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- Low Smoke PVC Insulation
- No Shield UTP
- Plenum PVC FT-6 Jacket – White
- Colour Code: Chart Number 5
Specifications
| Specifications for: 9924103L3-WH: Provo CAT3 Telephone UTP Cable 24-3pr SOL BC UNSH CSA CMP FT6 UL RoHS – White JKT | |
|---|---|
| Conductors | 3pr |
| Gauge (AWG) | 24 |
| Conductor Type | Solid Bare Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | Low Smoke PVC |
| Jacket Type | Plenum PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.155 |
| Weight (lb) | 20/10 |
| Flame Test Rating | FT-6 |
| Voltage | na |
| MHz | na |
| Temperature | -20 to 60 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Telephone Cable - CAT3- FT-6 |
