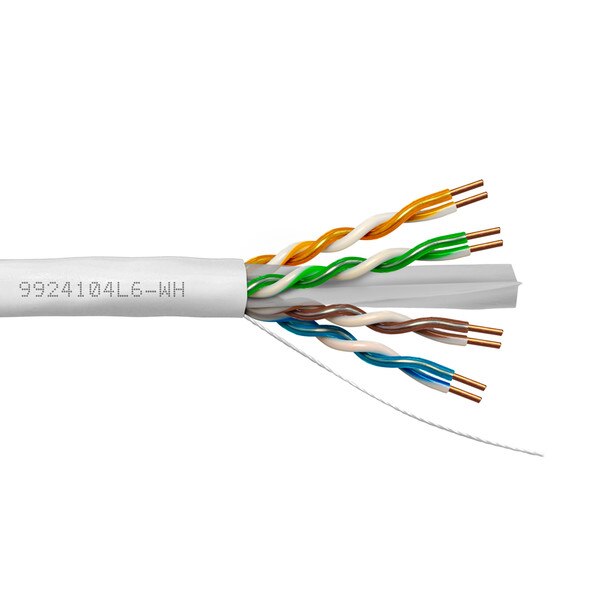

Provo CAT6 UTP Cable 23-4pr SOL BC UNSH 550MHz CMP ETL FT6 RoHS – White JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- FEP Insulation
- No Shield UTP
- 550Mhz
- Plenum FT-6 White Jacket
- Colour Code: Chart Number 5
Specifications
| Specifications for: 9924104L6-WH: Provo CAT6 UTP Cable 23-4pr SOL BC UNSH 550MHz CMP ETL FT6 RoHS – White JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | FEP |
| Jacket Type | Plenum PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.20 |
| Weight (lb) | 26/13 |
| Flame Test Rating | FT-6 |
| Voltage | 300 |
| MHz | 550 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Cat6 550Mhz Unshielded FT-6 |
