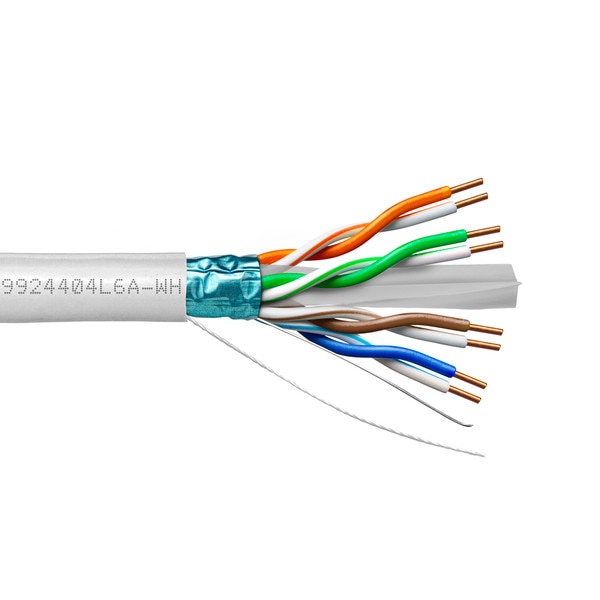

Provo CAT6A STP Cable 23-4pr SOL BC FL SH 500MHz CMP UL c(UL) ETL FT6 RoHS – White JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- FEP Insulation
- STP
- 100% Aluminum Foil Shield
- 24awg Tinned Copper Drain Wire
- 500Mhz
- Plenum FT-6 Whit Jacket
- Colour Code: Chart Number 5
Specifications
| Specifications for: 9924404L6A-WH: Provo CAT6A STP Cable 23-4pr SOL BC FL SH 500MHz CMP UL c(UL) ETL FT6 RoHS – White JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Cooper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Tinned Copper |
| Insulation Type | FEP |
| Jacket Type | Plenum PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.50 |
| Weight (lb) | na |
| Flame Test Rating | FT-6 |
| Voltage | 300 |
| MHz | 500 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Cat6A 500Mhz Foil Shielded FT-6 |
| Nominal Attenuation db/100ft. | |
|---|---|
| MHz | dB/100ft. |
| 1 | 2.1 |
| 5 | na |
| 10 | 5.9 |
| 30 | na |
| 50 | na |
| 100 | 19.1 |
| 200 | 27.6 |
| 400 | 40.1 |
| 500 | 45.3 |
| 700 | na |
| 900 | na |
| 1000 | na |
| 1200 | na |
| 1450 | na |
| 2400 | na |
Resources
Download 9924404L6A-WH Spec Sheet
