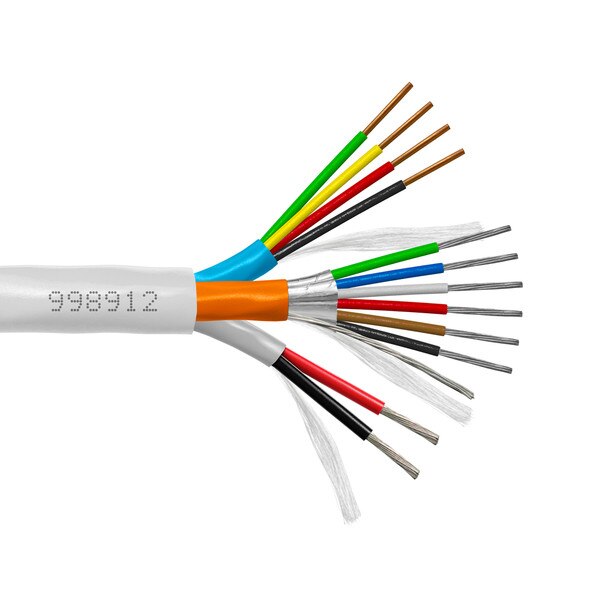

Provo Door Access Control Cable 22-6c STR TC FL SH + 22-4c SOL BC + 18-2c STR TC UNSH c(ETL)us FT6 RoHS – White JKT
Details
Details
Summary
- Consists of:
- Orange – Card Reader – 6c-22awg 100% F-Shld Stranded Tinned Copper Conductors & Tinned Copper Drain Wire
- Blue – Station "Z" Wire – 4c-22awg SOLID Bare Copper Conductors
- Grey – Power Cable – 2c-18awg N/Shld Stranded Tinned Copper Conductors
- Insulation: Plenum
- Overall PVC FT-6 Jacket – White
Specifications
| Specifications for: 998912: Provo Door Access Control Cable 22-6c STR TC FL SH + 22-4c SOL BC + 18-2c STR TC UNSH c(ETL)us FT6 RoHS – White JKT | |
|---|---|
| Conductors | 12c |
| Gauge (AWG) | 6c-22awg 4c-22awg 2c-18awg |
| Conductor Type | 6c 7x30 Stranded Tinned Copper 4c Solid Bare Copper 2c 16x30 Stranded Tinned Copper |
| Shielding | 6c-22awg - 100% Foil Shield 4c-22 Unshielded 2c-18 Unshielded |
| Drain Wire | Tinned Copper |
| Insulation Type | Plenum |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.410 |
| Weight (lb) | 80/40 |
| Flame Test Rating | FT-6 |
| Voltage | 300 |
| MHz | na |
| Temperature | na |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | na |
| Category | Door Access Control FT-6 |
