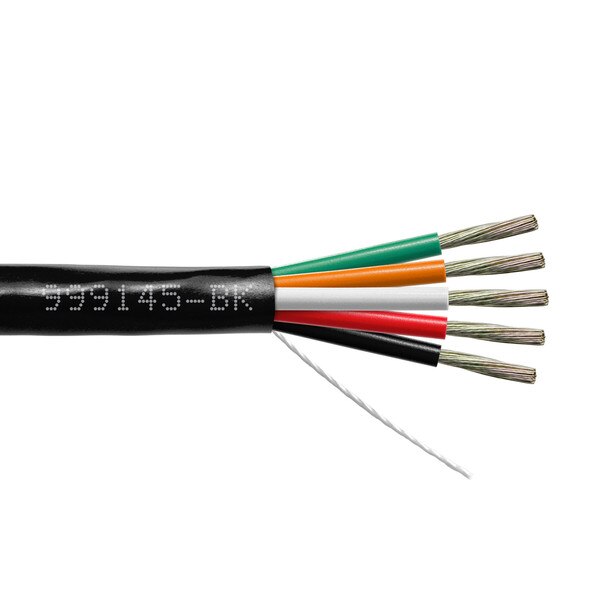

Provo Plenum Multi-Conductor 14-5c STR TC UNSH CMP CSA FT6 RoHS – Black JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- Conductors Twisted
- Plenum PVC Isolation
- Plenum FT-6 PVC Jacket – Black
- Colour code: Chart Number 2
Specifications
| Specifications for: 999145-BK: Provo Plenum Multi-Conductor 14-5c STR TC UNSH CMP CSA FT6 RoHS – Black JKT | |
|---|---|
| Conductors | 5c |
| Gauge (AWG) | 14 |
| Conductor Type | 19x26 Stranded Tinned Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | Plenum PVC |
| Jacket Type | Plenum PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.300 |
| Weight (lb) | 85 |
| Flame Test Rating | FT-6 |
| Voltage | 300 |
| MHz | na |
| Temperature | 75 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 2 |
| Category | Plenum Multi-Conductor Unshielded FT-6 |
Resources
Download 999145-BK Spec Sheet
