Alta Labs AP6 WiFi 6 2x2 Cloud Managed Ceiling/Wall Indoor Access Point
Details
Details
Summary
- WiFi 6
- Bluetooth (For Easy Adoption)
- Content Filtering
- PoE+
- 2.4 GHz MIMO 2x2
- 5 GHz MIMO 2x2
- 3.0 Gbps Max WiFi Throughput
Overview

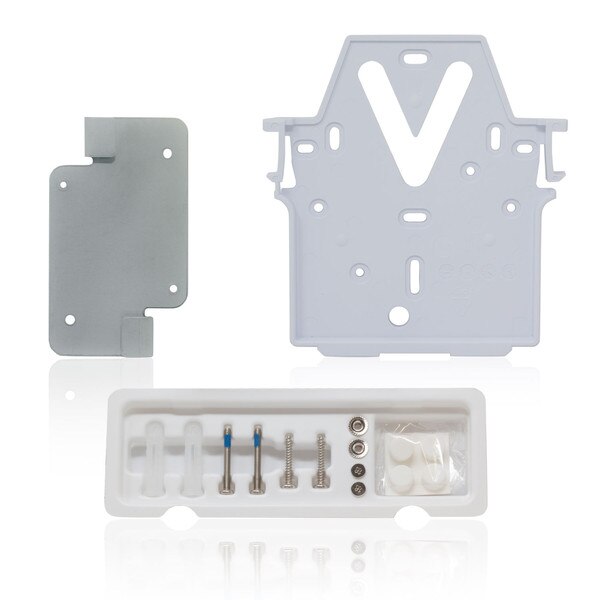

The Alta Labs AP6 Access Point features a compact form factor and a sleek aesthetic design allowing seamless integration into corporate, commercial, and residential environments. The AP is powered over Ethernet for simple, clean installation. Versatile mounting hardware is included featuring our proprietary QuickMountTM technology for quick, simple mounting.
Installing the AP6 and AP6-PRO
Alta Labs Cloud Management Platform: Web
Features
- Superior Range and Performance
- Scalable Cloud-Based Management
- Mobile App
- High Performance WiFi 6
- Multi-Password Authentication
- DPI Engine
- Hotspot Functionality
- On-The-Fly Changes and Scanning
- Wireless Network Color Coding
- SSID Broadcasting Flexibility
- Customizable Dashboard
- Status Snapshots
- Device Cards
Specifications
| Specifications for: ALT-AP6: Alta Labs AP6 WiFi 6 2x2 Cloud Managed Ceiling/Wall Indoor Access Point | |
|---|---|
| Mechanical | |
| Dimensions | 190 x 125 x 32 mm (7.5 x 4.9 x 1.25") |
| Weight | 0.4 kg (0.9 lbs) |
| Enclosure Material | Top Cover: Polycarbonate, Bottom Cover: Milled Aluminum |
| Mount Material | Ceiling/Wall: Polycarbonate, Drop Ceiling: Steel |
| Hardware | |
| Network Interface | Ethernet, WiFi, Bluetooth |
| Management Interface | (1) GbE RJ45 Port |
| Button(s) | Reset/Factory Reset |
| LED | Blue, White |
| Power Method | PoE+ |
| Power Supply | PoE+ Enabled Network Switch or 48V, 0.5A PoE Adapter (Optional) |
| Supported Voltage Range | 42.5-57V DC |
| Max. Power Consumption | 20W Max, 5-12W Typical @ 23°C (73°F) |
| Max. Transmit Power | 2.4 GHz: 23 dBm @2NSS 5 GHz: 23 dBm @2NSS |
| MIMO | 2.4 GHz: 2 x 2 5 GHz: 2 x 2 |
| Throughput Rate | 2.4 GHz: Up to 573 Mbps 5 GHz: Up to 2.4 Gbps |
| Antenna Gain | 2.4 GHz: Up to 4.0 dBi 5 GHz: Up to 4.1 dBi |
| Mounting | Wall, ceiling, drop-ceiling, table top |
| Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC (Visit Alta.inc for a full list of certifications) |
| Software | |
| WiFi Standards | 801.11a/b/g/n/ac/ax (WiFi4/WiFi5/WiFi6) |
| Roaming | 802.11r/k/v |
| Wireless Security | WPA2-PSK, WPA2-SAE, WPA-Enterprise (WPA2/WPA3) |
| Multi-BSSID | Supported |
| VLAN | 802.1Q |
| Advanced QoS | 802.11e |
| Guest Traffic Isolation | Supported |
| Concurrent Clients | 300+ |
| Zero Wait DFS | Yes |
| Intelligent WiFi Scheduling | Yes |
| Hotspot Functionality | Yes |
| Scalable | Yes |
| Seamless Per-Client Settings | VLAN, Device Type, Rate Limit, Hotspot/Schedule Exception |
| Supported Data Rates | |
| 802.11a/g | 6 Mbps to 54 Mbps |
| 802.11b | 1 Mbps to 11 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (Up to MCS 15) |
| 802.11ac | 6.5 Mbps to 1.9 Gbps (Up to MCS 9) |
| 802.11ax | 2.4 GHz: Up to 573 Mbps, 5 GHz: 6.5 Mbps to 2.4 Gbps (Up to MCS 11) |
