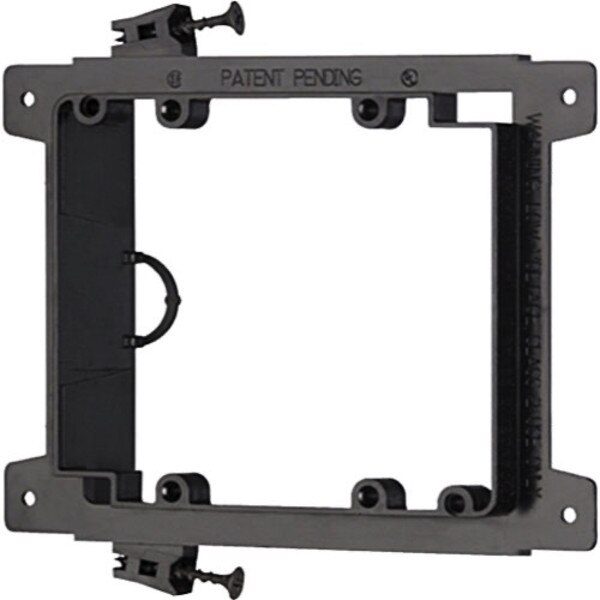

Arlington 2 Gang Low Voltage Mounting Bracket w/Screws
Details
Details
Summary
Screw On Low Voltage Mounting Brackets for New Construction.
2-gang brackets for the installation of low voltage Class 2 only.
Overview

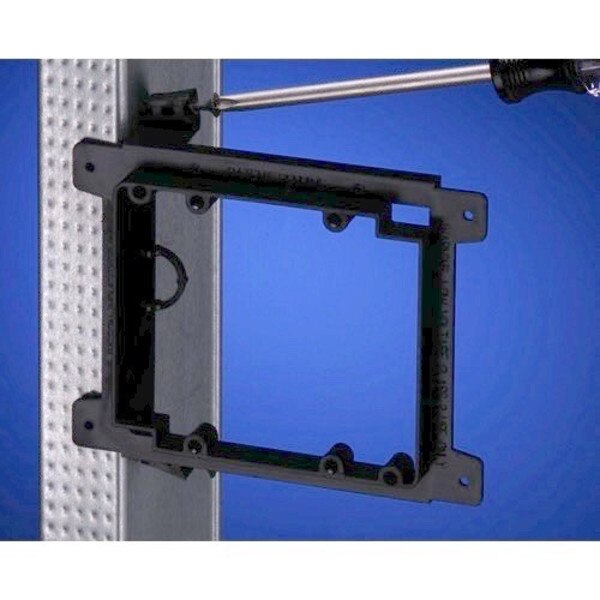

Just screw these non-metallic brackets to a steel stud – and you're ready to install low voltage Class 2 wiring!
25% faster installation over steel or plastic mud rings!
- Lower cost than extension rings or mud rings
- Ready to install screws come parked in-place
- Built-in loop for tying off cable
- Easy, secure mounting of bracket to studs with screws
Features
Features and Benefits
- Non-metallic
- Built-in loop to tie off cable
- Eliminates pushback
- Comes complete with screws parked in place ready to install!
- Installs in 25% less time than steel or plastic mud rings
- Screw-on (“S” styles) for metal studs
Specifications
| Specifications for: AR-LVS2: Arlington 2 Gang Low Voltage Mounting Bracket w/Screws | |
|---|---|
| Weight | 0.102 lbs/each |
| Height | 4.170" |
| Width | 5.492" |
| Depth | 1.500" |
| Colour | Black |
| Material(s) | Plastic |
| Style | Screw-On Non-Metallic Low-Voltage Mounting Bracket |
| Trade Size | 2-Gang |
