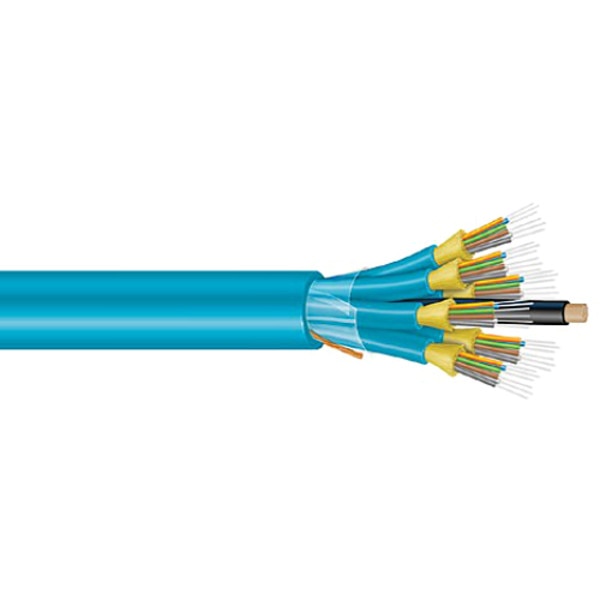

Provo Fiber 6F 50 MM OM3 T/B OFNP Dist. FT-6 – Aqua

Details

Summary

Equivalent to GC-BE0061PNU and PY-800-00-G3-006

33-Series Distribution Tight Buffer Plenum Fiber Optic Cable

Versatile Indoor Flame-Rated Cable providing unsurpassed performance for intrabuilding applications that require crossing floors in multi-level buildings or placement in air handling spaces

Features

Applications

Indoor in the plenum space and tray installations

Applicable Documents

TIA/EIA FOTP Standards 455
Colour Coding of Fiber Optic Cables TIA/EIA-598
NFPA262
Compliant with ANSI/TIA-568-C.3 standard
ICEA S-87-640 Standard
RoHS compliant directive 2002/95/EC

Cable Construction Details

Tight Buffered Fiber Dimension: 900μm, Nominal
Tight Buffer Colour Code: As per TIA/EIA-598 standard
Cable Strength: Aramid yarns are pulled in with tight buffered fibers under the outer jacket
Overall Sheath: UV resistant remguard plenum rated polymer

Specifications

Specifications for: PF-006MMTB-P: Provo Fiber 6F 50 MM OM3 T/B OFNP Dist. FT-6 – Aqua
Multi-Mode 50μm OM3 10GIG
Number of Fibers		6
Cable OD in. (mm)		0.200 (4.6)
Weight lb/1000ft (kg/km)		18 (27)
Maximum Attenuation dB/km	850 nm	3.0
	1300 nm	1.0
	1310 nm	N/A
	1550 nm	N/A
Overfill Launch Min Bandwidth (MHz-km)	850 nm	1500
Overfill Launch Min Bandwidth (MHz-km)	1300 nm	500
EMBc (MHz-km)		2000
Gigabit Ethernet Minimum Link Distance (Meters)	850 nm	1000
Gigabit Ethernet Minimum Link Distance (Meters)	1300 nm	550
10 Gigabit Ethernet Minimum Link Distance (Meters)	850 nm	300
10 Gigabit Ethernet Minimum Link Distance (Meters)	1300 nm	–
Maximum Tensile Load	Installation	1610N/362lbf
Maximum Tensile Load	Long Term	535 N/120lbf
Minimum Bending Radius	Loaded	20 x Diameter
Minimum Bending Radius	Unloaded	10 x Diameter
Crush Resistance		100 N/cm
Impact Resistance (min.)		25 Impacts
Flexing ± 90° (min.)		25 Cycles
Temperature Rating	Operation	-20°C to +85°C
	Installation	0°C to +75°C
	Storage	-40°C to +85°C
Colour		Aqua
