Provo Fiber 6F 50 MM OM3 T/B OFCP AIA Dist. FT-6 – Aqua

Equivalent to GC-BE0061PNU-ILPA and PY-800AJ-00-G3-006

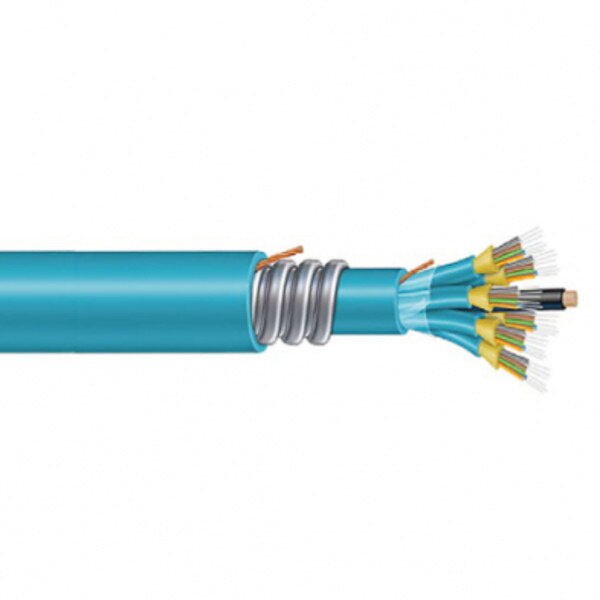

Product Construction:

Fiber:

• 4–144 fibers
• 900 μm tight buffer
• Color-coding per TIA/EIA 598 B

Overall Strength Member:

• Aramid fiber yarn

Inner Jacket:

• Flame-retardant compound

Armor:

• Interlock aluminum (-ILPA)

Outer Jacket:

• Flame-retardant compound
• Sequential footage markings*
• Aqua jacket—10 Gbps multimode fibers

Features:

• Interlock armor provides outstanding mechanical protection
• Interlock armor is flexible and easy to use
• Tight buffer provides individual fiber protection
• Sub-units are numbered for identification

Performance:

Temperature:

• Storage -40 ̊C (-40 ̊F) to +70 ̊C (+158 ̊F)
• Installation 0 ̊C (+32 ̊F) to +50 ̊C (+122 ̊F)
• Operating -20 ̊C (-4 ̊F) to +70 ̊C (+158 ̊F)

Minimum Bend Radius:

• 20 X OD—Installation
• 10 X OD—In-Service

Maximum Crush Resistance:

• 1,500 lbs/in (2,627 N/cm)

Applications:

• Harsh premises environments requiring
• heavy-duty protection
• ETL Type OFCP for installation in any premises location when installed in accordance with NEC article 770.154 and 770.179

Compliances:

• ETL Listed Type OFCP
• CSA FT6
• TIA 568 C.3
• ICEA S-83-596
• GR-409
• RoHS Compliant Directive 2011/65/EU

Note:

Armored cable without an outer jacket available upon request (-IL)
*Sequential meter markings available upon request
