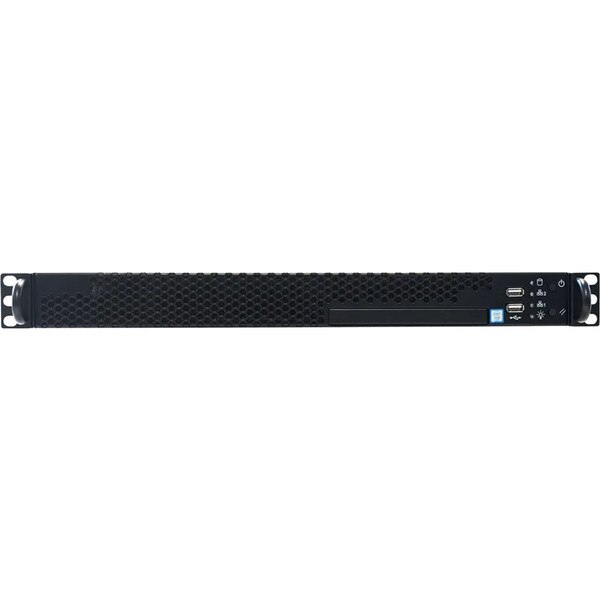

Provision-ISR Ossia VMS embedded Management Server, Supports up to 10000 Channels
Details
Details
Summary
Designed to deal with the most demanding tasks, Provision-ISR’s new management server makes a firm base for more extensive security systems. Combining high performance and embedded Ossia VMS on the one hand and the ability to manage up to 10K channels on the other, the OC-MS-XL(1U)-V2 makes a stable and robust solution for most security needs.
Specifications
| Specifications for: PV-OC-MS-XL-1U-V2: Provision-ISR Ossia VMS embedded Management Server, Supports up to 10000 Channels | |
|---|---|
| Modules | |
| Live View | Live view of cameras including groups, alarm views and E-Map monitoring, two-way audio, and audio broadcasting |
| Playback & Backup | Multi-channel playback based on time search, events, time slice, and tags |
| E-Map | Based on static JPEG image / live Google Maps® location |
| TV Wall Management | Set TV wall and encoder views, including live view, playback, and alarm pop-up windows |
| Resource Management | Manage cameras, recording devices, and optional Ossia VMS hardware |
| People Management | Create and manage different groups of people and synchronize them with face recognition devices |
| Account and Permission | Up to 1024 accounts and permission groups defined by the user |
| Alarm Center | View and configure alarm events, system responses, and SOP configuration |
| LPR Monitoring | Configure LPR monitoring points, vehicles, and access barriers |
| Face Recognition | Supports all Provision-ISR face recognition devices and multiple device database synchronization |
| Face Greeting | Use an external screen to display a greeting message welcoming recognized faces |
| Face Attendance | Use Ossia VMS as an attendance system based on face recognition |
| People Counting | Configure counting tasks for multiple supported DDA cameras |
| Operation and Maintenance | View logs and overall system status |
| Temperature Units | Set and monitor EC-001 devices, including alarm events |
| Local Configuration | Configure all local settings related to the Ossia VMS server/client configuration |
| Hardware | |
| CPU | Intel Xeon Processor, 3.3GHz, 8M |
| NDAA Compliant | Yes |
| GPU | Embedded HD Graphics P530 / 72W |
| RAM | 8GB DDR RAM, expandable to 64GB |
| Network Card | Intel I350-T2 + Intel 210 + Intel I219 |
| HDD | Built-in 120GB SSD |
| PCI Expansion | 1 × PCI-E3 (x1)**, 1 × PCI-E3 (x4), 1 × PCI-E3 (x8)**, 1 × PCI-E3 (x16)*; *used by the network card; **blocked by the network card |
| SATA | 2 × SATA |
| Interface | |
| Display | HDMI + VGA/DVI independent display |
| LAN | 4 × 1Gbps (2 embedded + 2 over PCI card) |
| Keyboard / Mouse | PS/2 keyboard + mouse |
| USB | 4 × USB 3.0 rear ports + 2 × USB 2.0 front ports |
| Performance | |
| Display | HDMI + VGA/DVI independent display |
| Max Channels | 10,000 |
| Included License | 512 |
| 3rd Party Channels | 64, can be extended with license |
| Max Devices | Total: 500; max NVR: 300; max IPC: 500 |
| 3rd Party Devices | 64, can be extended with license |
| Device Group Support | Yes |
| Local Decoding Capability | Single monitor 1080p: up to 36 channels @ D1; dual monitor 1080p: up to 25 channels @ CIF per monitor; single monitor 4K: up to 25 channels @ 720p; dual monitor 4K + 1080p: up to 18 channels @ 720p per monitor |
| Incoming Bandwidth | 880Mbps |
| Outgoing Bandwidth | 880Mbps (live + transfer) |
| Max Streaming Capability | Depends on bandwidth |
| Registered Users | Up to 1024 |
| Max Online Users | 64 |
| Fish-Eye Support | Full |
| PTZ Support | Movement / preset management |
| Recording | Local recording (schedule / event / manual) / on storage server |
| Local Playback | Up to 100 channels |
| Remote Playback | Up to 100 channels; recording device restrictions apply |
| Max Devices Added by a Single Transfer Server | Total: 500; max NVR / DVR: 300; max IPC: 500 |
| Max Channels Added by a Single Transfer Server | 2048 channels |
| Platform Connectivity | |
| Video Decoder | Yes, up to 256 HDMI outputs |
| Storage Server | Yes, up to 32 |
| Video Transfer Server | Yes, up to 32 |
| Joystick | Yes |
| Client Support | Yes, up to 256; outgoing bandwidth restrictions apply |
| Web-Client Support | Yes, up to 256; outgoing bandwidth restrictions apply |
| General | |
| Management | Local configuration, remote management by PC client / web client |
| Installation | Standard 19″ rack mount |
| Operating Temperature | Working: 10°C to 35°C; standby: -40°C to 70°C |
| Noise | Working: < 50dBA; 6.2BA (< 28°C) |
| Protection Rating | None, indoor installation |
| Net Weight | ~12kg |
| Dimensions | 430 × 487 × 44mm |
| Power | 100V/6A to 240V/3A, 50~60Hz |
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, file monitor, import-table protection, dynamic-memory protection |
