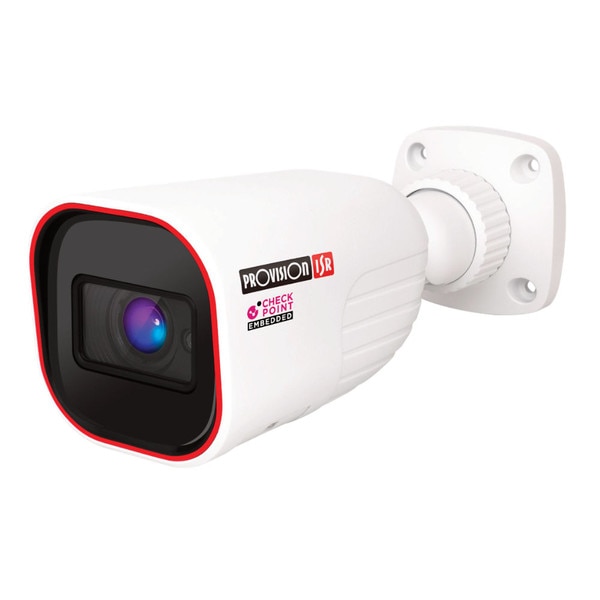

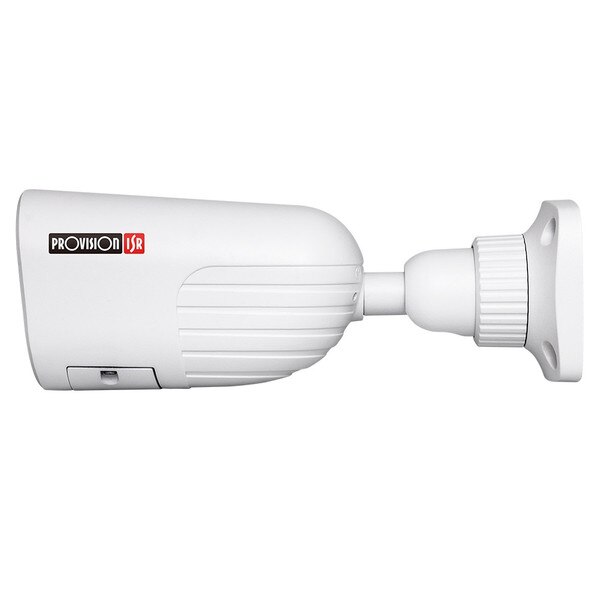

Provision-ISR 4MP Bullet Eye-Sight IP MVF 2.8-12mm Lens w/ 40M IR Camera – White

SKU: PV-I4-340IPEN-MVF-V4

Details

Details

Summary

40m IR 4MP DDA2 analytics motorized vari-focal lens bullet camera with built-in check point protection and dual system technology

Overview

Equipped with a 2.8-12mm motorized lens, this 4MP camera is designed for medium-distance surveillance (up to 40m) in indoor and outdoor scenarios. Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues. The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The I4-340IPEN-MVF-V4 camera is here to end false alarms and, with the Check Point protection, ensures that your devices are cyber-protected round the clock.

Features
  • 4MP
  • EYE-SIGHT
  • 2592×1520 Resolution
  • 2.8-12mm Motorized Vari-Focal (100°-29°)
  • 3D-DNR
  • IP67
  • DDA2 Analytics
  • Alarm in + out
  • General Analytics: Camera Tampering
  • AI (Object Recognition):
    • DDA Sterile Area
    • DDA Line Crossing
    • DDA Object Counting
  • AI (Face Detection): 10 Faces per frame
  • AI: Heatmap
  • DDA2: Advance Object Classification
Specifications
Specifications for: PV-I4-340IPEN-MVF-V4: Provision-ISR 4MP Bullet Eye-Sight IP MVF 2.8-12mm Lens w/ 40M IR Camera – White
Image Sensor1/3 CMOS (16:9)
Effective Pixels2592X1520
Electronic Shutter1/2s ~ 1/100000s
Frame Rate1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode***
Day & NightICR
Min. IlluminationDay: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on
Audio compressionG.711A/G.711U
CommunicationOne-way Audio
Image SettingsAWB, AGC Adjustable, Exposure Mode (Auto)
Sharpness, Saturation, Brightness & Contrast Adjustable
Image EnhancementTrue WDR (120dB), BLC, HLC, ROI
Noise Reduction3D-DNR
Image OrientationMirror/Flip
Privacy ZoneYes
Motion DetectionYes
AnalyticsGeneral Analytics: Camera Tampering
AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting
AI (Face Detection): 10 Faces per frame
AI: Heatmap
DDA2: Advance Object Classification
DRI DistanceDetect 2.8~12mm(W): 58.91m(193.27ft) - 2.8~12mm(T): 205.99m(675.82ft)
Recognize 2.8~12mm(W): 11.78m(38.74ft) - 2.8~12mm(T): 41.20m(119.32ft)
Identify 2.8~12mm(W): 5.89m(19.35ft) - 2.8~12mm(T): 20.60m(59.64ft)
Video CompressionH.265+/H.264+/H.265/H.264/MJPEG*
Resolution4MP (2592x1520) / 3MP (2304x1296) / 2MP (1920x1080) / D1 / QVGA /CIF
Multi-StreamMaster Stream: 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP
Substream: 1MP/QVGA/D1/CIF
Third Stream: QVGA/D1/CIF (1~30fps)
Bit rate64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264
Encode ModeVBR/CBR
Image QualityFive levels under VBR; Free adjustment under CBR
IR Distance40m (2 High Power IR LED)
Lens (Field of View)2.8-12mm MVF with Auto Focus (100°-29°)
IrisDC Iris
Lens MountØ14 mount
Protection RateWater Proof: IP67
Bracket3-Axis Bracket

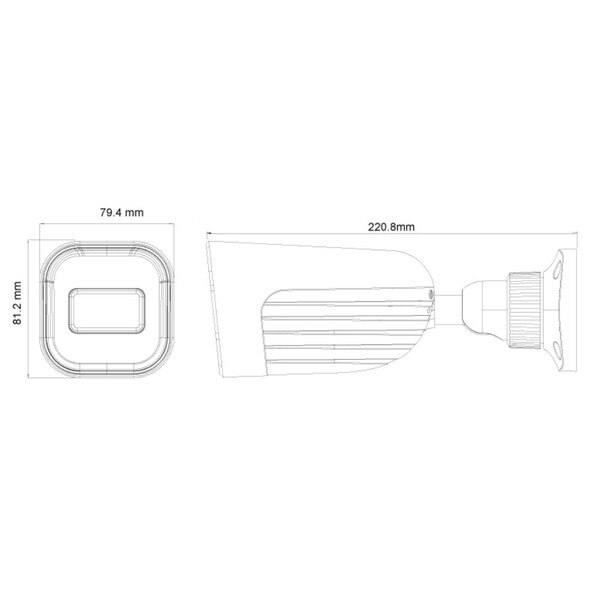

Dimensions220.8x79.4x81.2mm
Weight (gross)~820g
NetworkRJ45 (+PoE)
PowerDC Socket
Analog Video OutputNo
Audio ConnectivityAudio Input

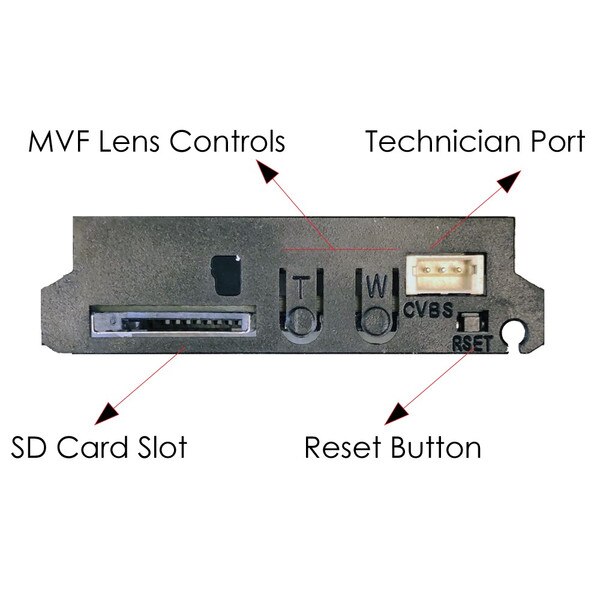

SD CardEvent/Schedule based Main/Sub-Stream recording (Up to 256Gb)
Hard Reset ButtonYes
AlarmAlarm in + Alarm out
Remote MonitoringIE Browsing, VMS Software, Provision Cam2 Mobile App
User AccessSupports simultaneous monitoring for up to 10 users with multi-stream real-time transmission
Network ProtocolIPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P
ONVIFYes
Ethernet100Mbps
PoEYes
Power SupplyDC12V/~650mA / PoE/~9.5W
Work Environment-30°~60°, 10%~90% Humidity
Junction BoxPR-JB12IP66 - PR-JB12IP64
Resources



PDF Icon Download Provision-ISR's Bracket Matching System PDF
