Provision-ISR Ossia VMS embedded management server – supports up to 256 channels

Ossia VMS embedded management server / client supports up to 256 channels

OC-MSCL-S (DT) V2 server/workstation is mainly developed for small to medium-sized security systems. Provision-ISR delivers a winning solution to the field of security with designated hardware that runs embedded Ossia VMS. This design makes the system far more stable, cost-worthy, and easy to use. As a result, the device is fully dedicated to its task – CCTV management and operation.

Main features:

• Pre-installed OSSIA VMS (Server + Client)
• 2 in 1 (Management Server + Local Client / Remote Client)
• 256 Channel support
• 64 Device support (Recorder/IPC)
• Supports 4 PC + 32 Mobile App clients
• Storage server compatibility
• Set & view AI analytics
• Face database management
• Fisheye special views support (Future Release)
• LPR Monitoring
• User Management
• Map support (including google maps)
• Decoder support
• Audio broadcast

Client Capabilities:

• Embedded Client: Yes
• Web-Client Support: No
• Max Client Connection: Up to 4 PC Clients + 32 Mobile Clients (Outgoing Bandwidth restriction apply)

Video Output:

• 1xHDMI (4K)
• 1xVGA(1080P)

Bandwidth:

• Incoming: 400Mbps
• Outgoing: 400Mbps (Live + Transfer)

Storage:

• Built-in 128GB SSD

Recording:

• on Storage Server only (when on server mode)

Live View & Playback:

• Live view of cameras including groups, alarm views and E-Map monitoring, Two-Way Audio, and Audio Broadcasting
• Multi-Channel playback based on Time Search, Events, Time Slice, and Tags
• Local playback up to 32Ch
• Remote playback up to 100Ch (Recording device restrictions apply)

Audio:

• Two-way audio

Alarm:

• Input: Device inputs only
• Output: Device outputs only

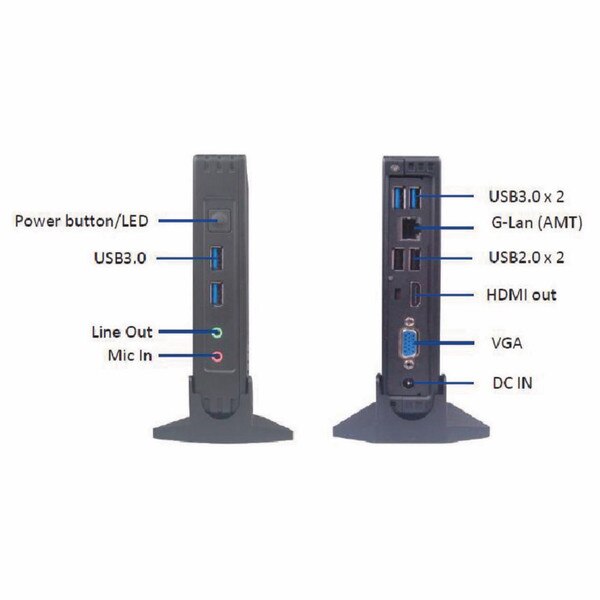

USB Port:

• 6 Total: 2 x USB3.0 + 2 x USB2.0 (Rear Panel) + 2 x USB3.0 (Front Panel)

Network:

• 1 x RJ-45 (1000Mbps)
