Simply45 Strain Reliefs for Simply45® Shielded External Ground for Pass-Through & Standard RJ45 – 100 pc/Resealable Bag

SKU: S45-B003

Details

Details

Summary

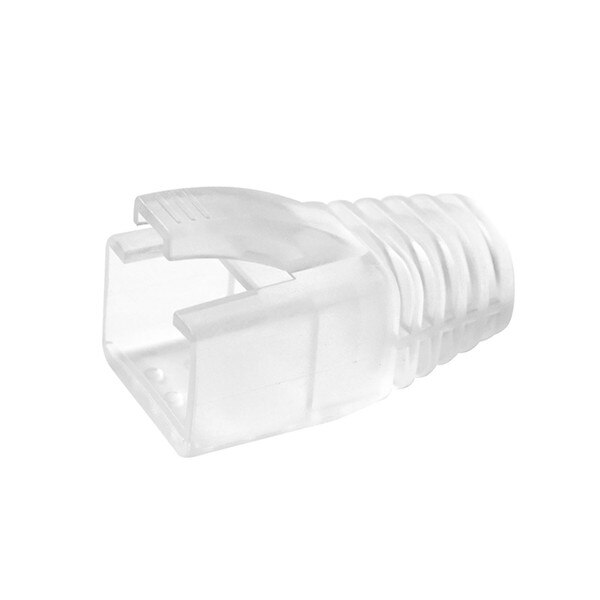

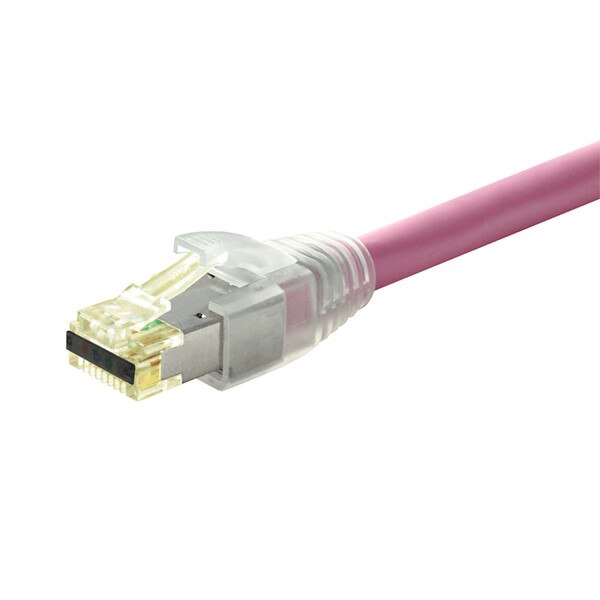

Simply45® strain relief boots give a finished and professional look to the cable assembly, improving cable management and reducing the chances of accidental disconnections. Strain reliefs prevent excessive bending or twisting of the cable near the connector, reducing the risk of damage to the internal wires and ensuring a longer lifespan for the cable. Simply45® strain reliefs are the same width as the RJ45 connector body and becomes integrated into the RJ45 plug during the crimping process. The extended tab provides a snag proof protection for the locking tab on the plug. Adding strain reliefs is a cost-effective way to ensure the longevity and reliability of your network connections.

Specifications
Specifications for: S45-B003: Simply45 Strain Reliefs for Simply45® Shielded External Ground for Pass-Through & Standard RJ45 – 100 pc/Resealable Bag
Category TypeCat5e/6/6a
Connector StylePass Through, PROSeries or Standard Modular Plugs
Cable TypeSTP with External Ground
Max Cable OD8.5 mm (0.335″)
Plug MaterialPolycarbonate
Material RatingUL94 V0 Commercial (Plenum, LSZH) Rated
Strain Relief ColorClear Tint
UL & cUL ListedE520614
CompliantTAA, P65

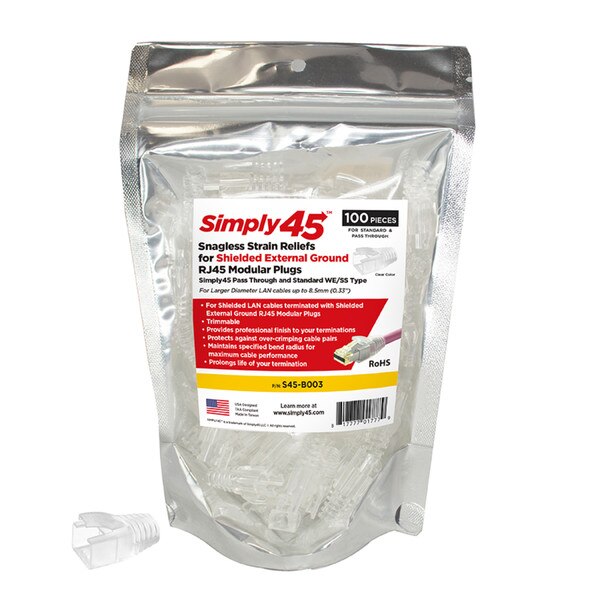

Packaging TypeResealable Bag
Package Quantity100 pieces
