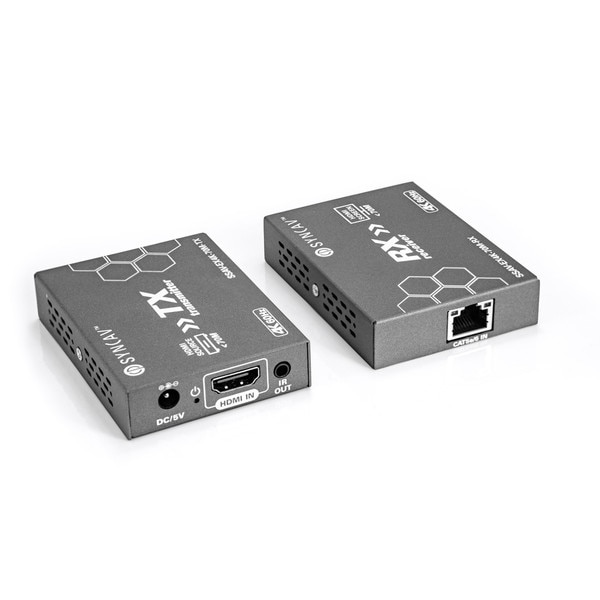

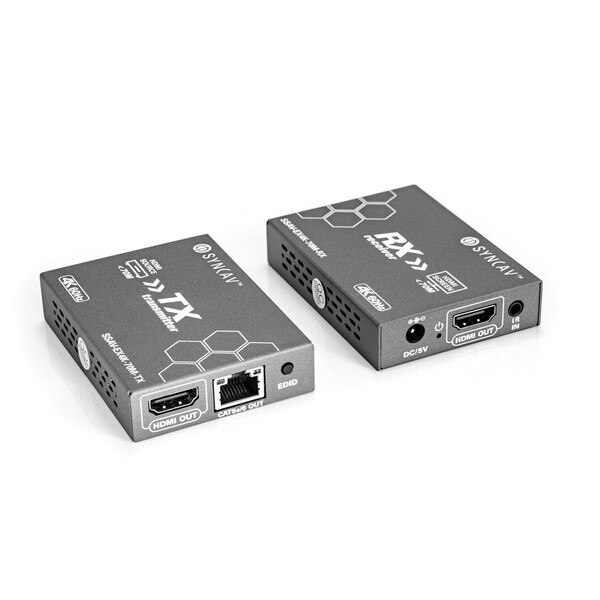

SyncAV 4K HDMI Extender
Details
Details
Summary
The SyncAV HDMI extender uses one single Cat5e or Cat6 (recommended) to extend the 4K signal to 70 Meters. The purpose of the extender is to achieve long-distance signal transmission with lower costing wires.
Features
- Signal transmission: Cat5e or Cat6 (recommended) cables up to 70 meters instead of HDMI cables are connected between TX and RX Extender
- Compliant with HDMl2.0, HDCP2.2 and DVI 1.0
- Support video format up to 4k2k@60Hz with 24bit RGB/YcbCR 4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4
- Support 3D frame sequential video format up to 1080p@60
- Support transmitter with loop out
- Support 20-60KHz IR re-transmitting
- Audio format support: DTS-HD/Dolby-trueHD/LPCM7.1 /DTS/Dolby-AC3/DSD
- Extend the transmission distance and improve transmission signal
Specifications
| Specifications for: SSAV-EX4K-70M: SyncAV 4K HDMI Extender | |
|---|---|
| Cable Run between Transmitter and Receiver | Up to 70M |
| HDMI Input/Output | 4Kx2K@60Hz/1080P/1080i/720p/576p/576i/480p/480i |
| Supported Audio Format | DTS-HD/Dolby-TrueHD/LCPM7.1/DTS/Dolby-ACS3/DSD |
| Max Bandwidth | 600MHz |
| Max Baud Rate | 18Gbps |
| Input Video Signal | 0.5-1.5 volts p-p |
| Output DDC Signal | 5 volts p-p (TT1L) |
| Input/Output HDMI Cable Distance | <10m AWG26 HDMI Cable |
| Max Working current | 800mA |
| Power Adapter Format | Input AC (50HZ, 60Hz) 100V-240V; Output DC5V/1A |
| Operating Temperature Range | -15 to +55°C |
| Operating Humidity Range | 5 to 90%RH (no condensation) |
| Dimensions (L x W x H) | 78.5x58x17mm |
Download SSAV-EX4K-70M User Manual
