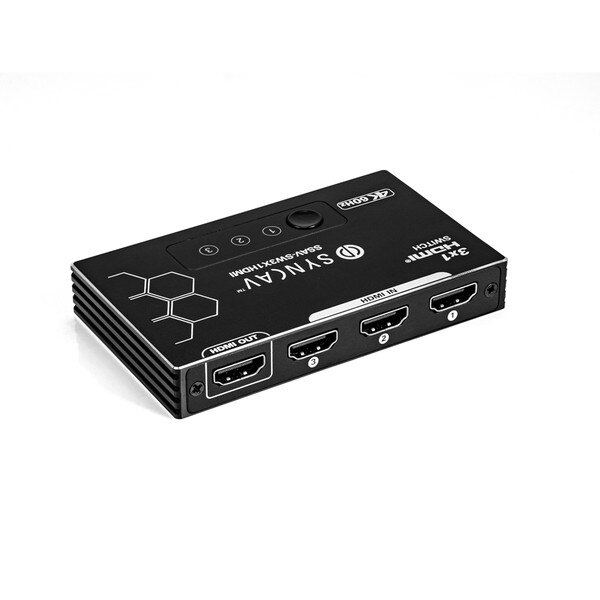

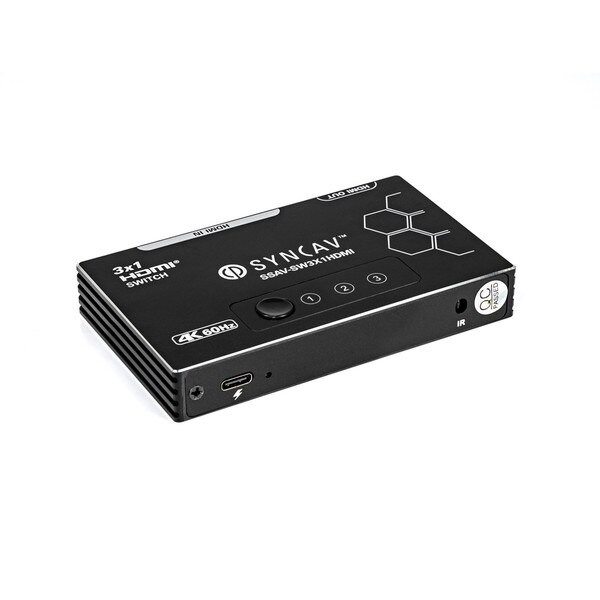

SyncAV 3X1 4K HDMI Switcher
Details
Details
Summary
The SyncAV HDMI Switch can switch multiple HDMI Signals to one high definition display device (such as an HDTV) through the use of a manual push button. This can be used to prevent manually changing cables regularly.
Features
Features
- To support the simultaneous transmission of three video streams, multiple video signals can be transmitted to the same screen
- Switching is done via itself automatically when signal present on the ports
- Compliant with HDMl2.0, HDCP2.2 and DVI 1.0
- Support video format up to 4k2k@30Hz with 24bit RGB/YcbCR
- 4:4/YCBCR4:4:4,and up to 4k2k@60Hz with 12bit YCBCR 4:4:4
- Support 3D frame sequential video format up to 1080p@60
- Support high resolution VESA mode video format up to QSXGA@60Hz
- Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
- Supports IR and Panel button control;
- Compatible with DVI by using HDMI TO DVI adapter
- Extend the transmission distance and improve transmission signal
- Metal casing design and overall shielding without signal interference
- Power supply(Please refer to technical parameter).
Specifications
| Specifications for: SSAV-SW3X1HDMI: SyncAV 3X1 4K HDMI Switcher | |
|---|---|
| Product | 3X1 HDMI Switch |
| HDMI Source Input Port | 3 |
| Display Device Output Port | 1 |
| Source Port Connector | 19 PIN HDMI (A Type) |
| Display Device Port Connector | 19 PIN HDMI (A Type) |
| HDCP Compliant | Yes |
| Source Device Selection | Push Button IR Remote Control |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P (TTL) |
| Deep Color | 48 Bit |
| Single Link Range | 3840x2160 |
| HDMI Version | HDMI 2.0 |
| Bandwidth | Up to 600Mhz |
| Signal Speed | Up to 18Gbps |
| Length of Input Cable | < 10M |
| Length of Output Cable | < 10M |
| The Cable Standard | 28AWG HDMI2.0 |
| Vertical Frequency Range | 60Hz |
| Power Consumption Max | 2.5 Watts |
| Operation Temperature | 0°C - 70°C |
| Working Voltage | DC 5V |
| Power Adaptor | USB Cable |
| Net Weight (g) | 110 |
| Dimensions LxWxH (mm) | 102x60.5x16 |
