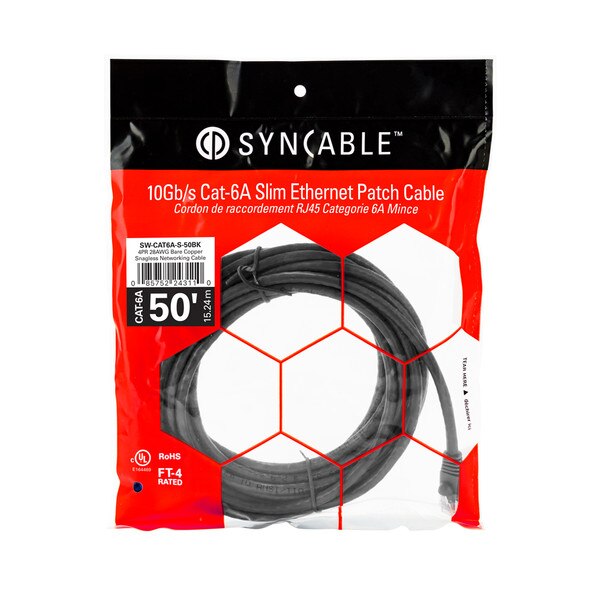

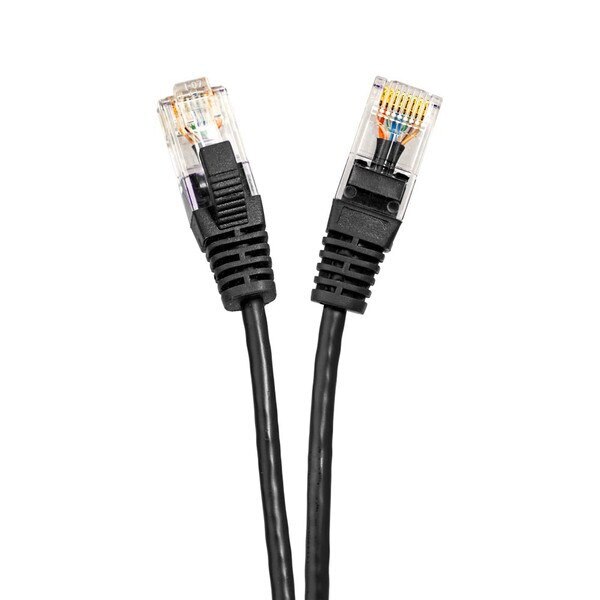

SynCable RJ45 CAT-6A 10Gbs FT-4 Molded Super Slim Patch Cable – 50ft – BK
Details
Details
Summary
Bare Copper 28AWG Conductor, UTP Unshielded, PVC Jacket, cUL, Black
Specifications
| Specifications for: SW-CAT6A-S-50BK: SynCable RJ45 CAT-6A 10Gbs FT-4 Molded Super Slim Patch Cable – 50ft – BK | |
|---|---|
| Jacket Type | PVC |
| Conductor | Bare Copper 28AWG |
| Performance Frequency | 500MHz |
| Voltage Rating | 300V DC |
| Insulation Thickness | MIN: 0.11 mm MAX: 0.13 mm |
| Insulation Diameter (Nominal OD) | 0.6 mm |
| Jacket Diameter (Nominal OD) | 4.0 mm ± 0.2 mm |
| Temperature Rating | -20° C - 75° C |
| Fire Rating | FT-4 |
| Certification | CMR(UL), c(UL), ETL Verified, RoHS Compliant |
