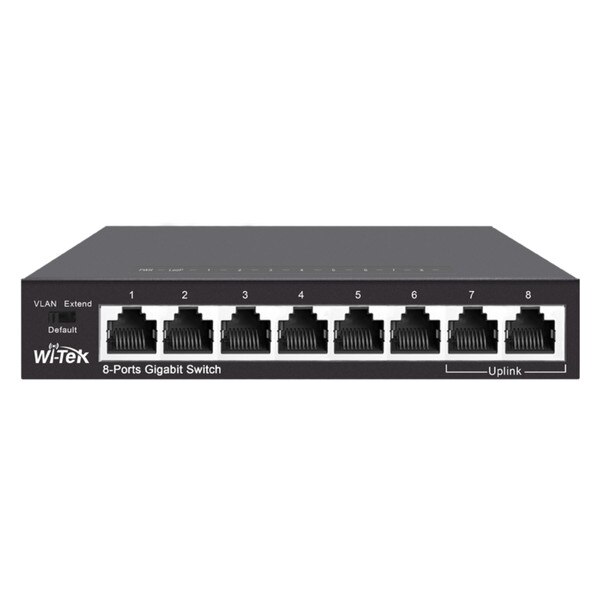

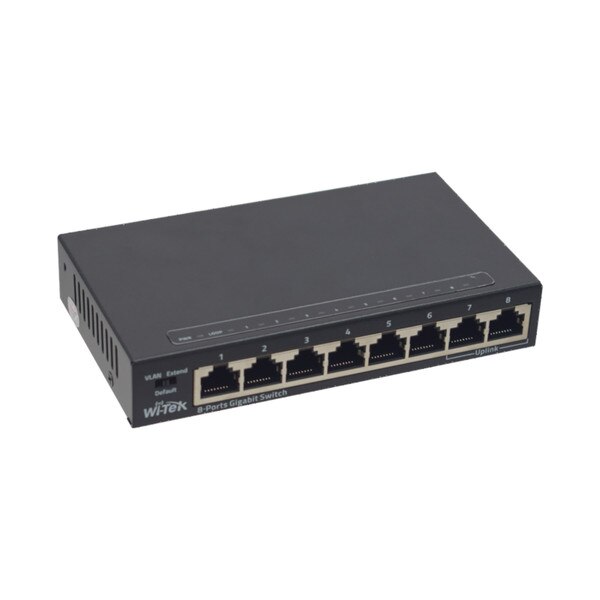

Wi-Tek 8 Port Plug-and-Play Gigabit Ethernet Switch
Details
Details
Features
Specifications
| Specifications for: WI-SG108: Wi-Tek 8 Port Plug-and-Play Gigabit Ethernet Switch | |
|---|---|
| Model | WI-SG108 |
| Downlink Ports | 6 10/100/1000Mbps RJ45 ports |
| Uplink Ports | 2 100/1000Mbps RJ45 ports |
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.90 Mpps |
| MAC Address Table | 1k |
| Packet Buffer Memory | 2.5 Mb |
| Jumbo Frame | 2 kB |

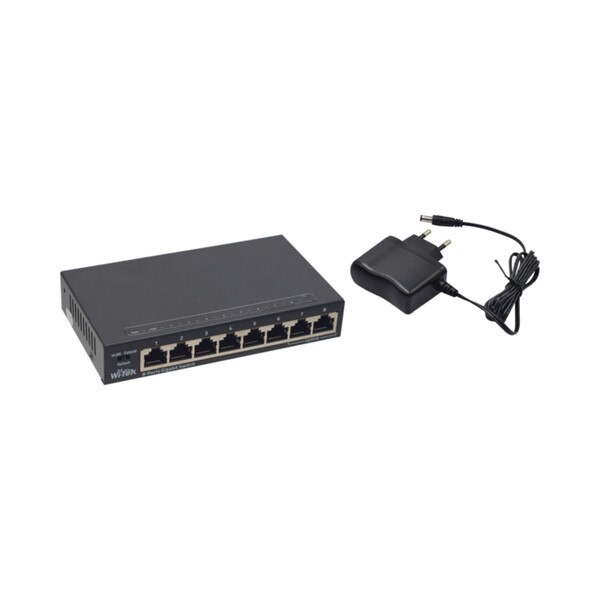

| Input Power | DC 5V/1A, Maximum 5W |
| DIP Switch | Default: The transmission distance of port can be up to 100m with 1000Mbps. VLAN: All downlink ports are isolated from each other, but can communicate with uplink ports. Extend: The transmission distance of port can be up to 250m, but the rate is limited to 10Mbps |
| LED Indicators | PWR (Green): On: The device power on is normal; Off: The device is power off or failed. Port 1–8 (Green): On: Data on TX/RX at a rate of 10M/100M/1000M; Off: Ports link down. LOOP (Orange): On: loop alarm; Off: no loop in the network |
| Surge Immunity | IEC 61000-4-5, Common mode 6kV, Differential mode 2kV |
| ESD Protection | IEC 61000-4-2, Contact discharge 4kV, Air discharge 8kV |
| Operating Temperature | -10°C to 50°C (14°F to 122°F) |
| Operating Humidity | 10%~90% RH no condensation |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Storage Humidity | 5%~95% RH no condensation |
| Certifications | CE, FCC, RoHS, UKCA, RCM |
| Fan Quantity | Fanless |
| Package Dimension | 176 × 122 × 63 mm |
| Switch Dimension | 138 × 78 × 25 mm |
| Weight | Net Weight: 0.27 kg; Package Weight: 0.45 kg |
| Installation | Wall-mounted, Desktop |
