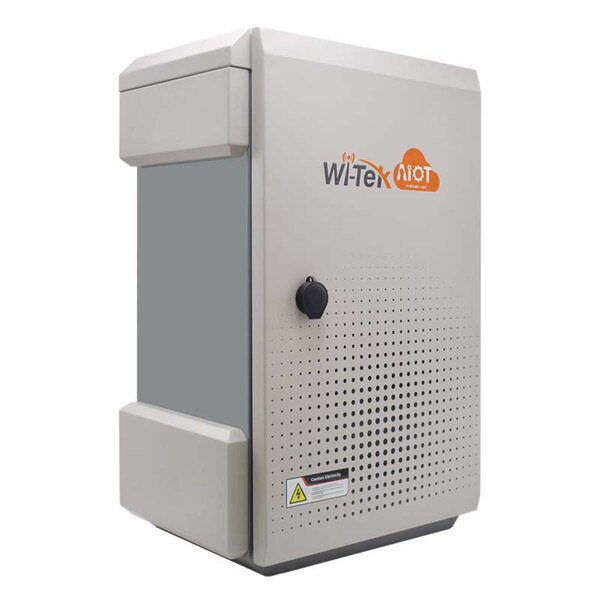

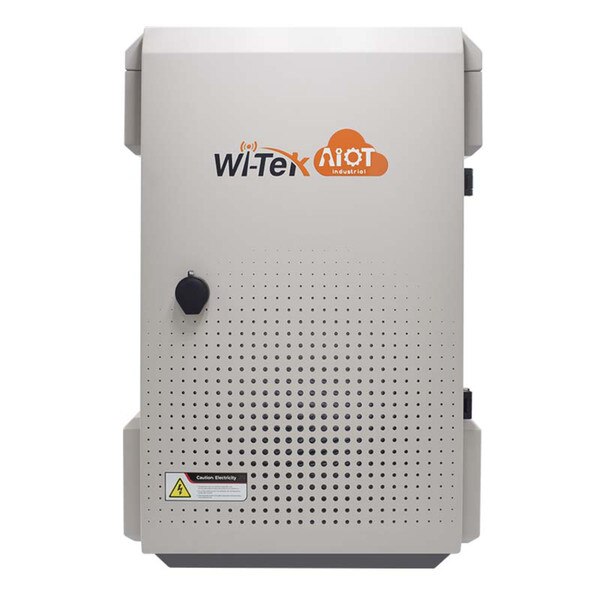

Wi-Tek Outdoor Electrical equipment protection box

SKU: WI-IOTBOX02

Details

Details

Features
Specifications
Specifications for: WI-IOTBOX02: Wi-Tek Outdoor Electrical equipment protection box
Hardware Features
Overall Dimensions (W*H*D)400*600*256.5mm
Inner Dimensions (W*H*D)350*560*230mm
Weight(kg)12.6
Package Dimensions (W*H*D)460*670*290mm
Package Weight(kg)15.1
Thickness1.2mm
MaterialSUS430 Stainless Steel
ColorLight Grey + Grey
Surface TreatmentElectrostatic Spraying
InstallationPole/Wall/Floor mounted
Door1
Lock Hole1
Detachable Side Plate4 (2 on each side panel)
M25 Waterproof Connector4 (2 on each side inner panel)

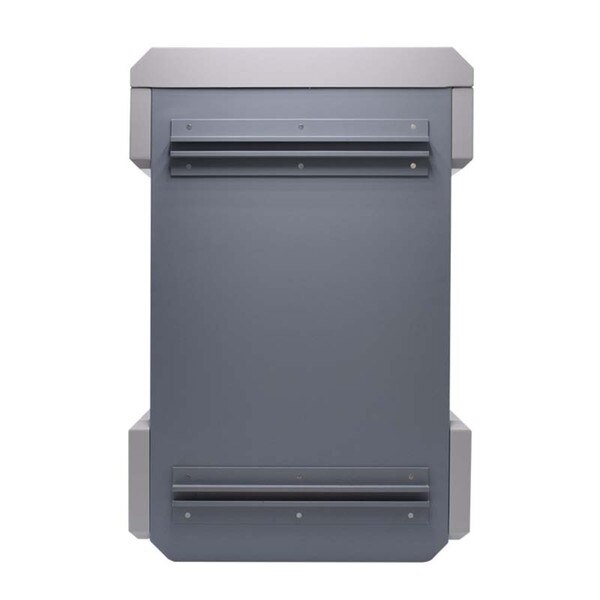

Aluminum Alloy Chute2 (on the rear panel)
Bottom Cable Entry1 (at the bottom)
Air Intake Holes / Water Outlet Holes4 (at the bottom, with rubber plugs)
Microswitch1 (on the upper right inside)
Fan1 (on the top inner panel)
ProtectionIP65, IK10
Application
ApplicationJunction, Distribution, Electrical, Battery, Control, Monitoring etc. Outdoor waterproof Enclosure Box
