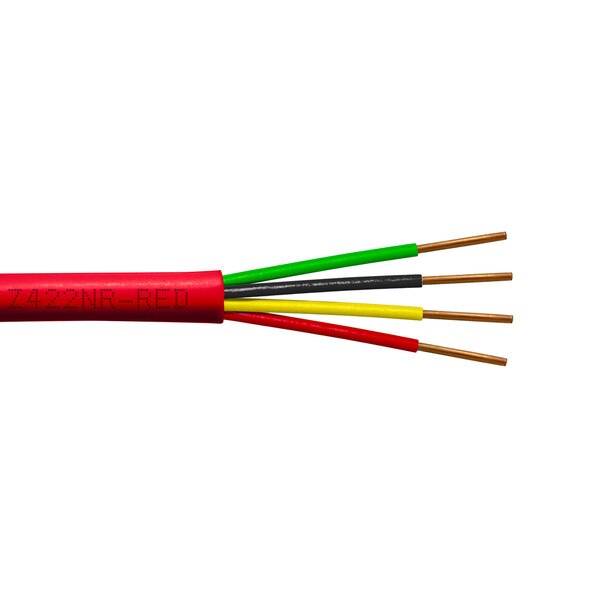

Provo Type "Z" 22-4c SOL BC No Rip Cord ETL FT4 UL RoHS – Red JKT

SKU: Z422NR-RED-300

Details

Details

Summary
  • Solid Bare Copper Conductors
  • Polyethylene Insulation
  • 4 Conductor No Rip Cord
  • CMR FT-4 Red PVC Jacket
  • Colour Code: Red/Green/Yellow/Black
Specifications
Specifications for: Z422NR-RED: Provo Type "Z" 22-4c SOL BC No Rip Cord ETL FT4 UL RoHS – Red JKT
Conductors4c
Gauge (AWG)22
Conductor TypeSolid Bare Copper
ShieldingUnshielded
Drain Wirena
Insulation TypePolyethylene
Jacket TypePVC
Armourna
Armour O.D.na
Nominal O.D.0.129
Weight (lb)12
Flame Test RatingCMR FT-4
Voltage300
MHzna
Temperature-20 to 75 °C
Put-up Meters300
ComplianceRoHS
Colour CodeRed/Green/Yellow/Black
CategoryType "Z" No Rip Cord FT-4
Resources

PDF Icon Download Z422NR-RED Spec Sheet
