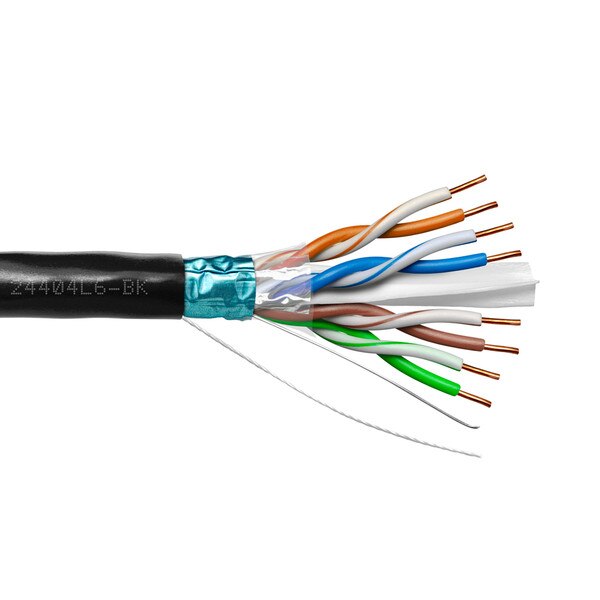

Provo CAT6 STP Cable 23-4pr SOL BC FL SH 550MHz CMR ETL FT4 RoHS – Black JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- Polyethylene Insulation
- Shielded (F/UTP)
- 550Mhz
- 100% Aluminum Foil Shield
- 24awg Tinned Copper Drain Wire
- Black CMR PVC FT-4 Jacket
- Colour Code: Chart Number 5
Specifications
| Specifications for: 24404L6-BK: Provo CAT6 STP Cable 23-4pr SOL BC FL SH 550MHz CMR ETL FT4 RoHS – Black JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Tinned Copper |
| Insulation Type | Polyethylene |
| Jacket Type | PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.285 |
| Weight (lb) | 42 |
| Flame Test Rating | CMR FT-4 |
| Voltage | 300 |
| MHz | 550 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Cat6 550Mhz - Foil Shielded - FT-4 |
Resources
Download 24404L6-BK Spec Sheet
