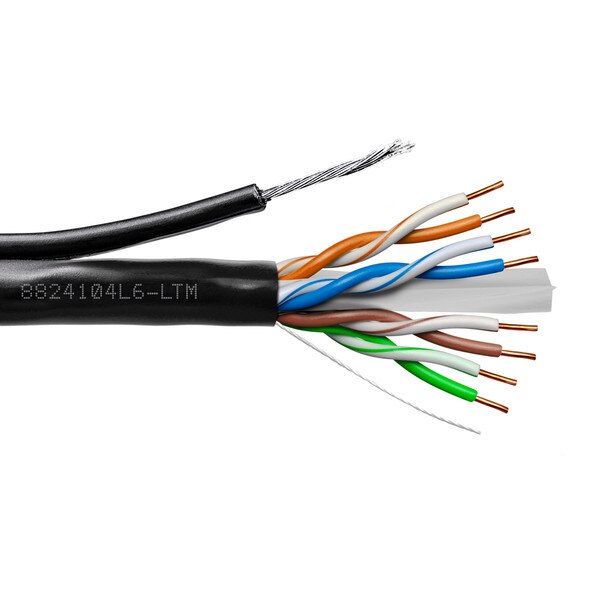

Provo Outdoor Aerial CAT6 550MHz 23-4pr SOL BC Low Temp RoHS w/Steel Messenger – Black JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- HDPE Insulation
- 550Mhz
- Cable With Low Temp Steel Messenger
- Low Density UV Resistant Polyethylene Jacket – Black
- -40° C +80° C
- Colour Code: Chart Number 5
Specifications
| Specifications for: 8824104L6-LTM: Provo Outdoor Aerial CAT6 550MHz 23-4pr SOL BC Low Temp RoHS w/Steel Messenger – Black JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | HDPE |
| Jacket Type | Low Density UV Resistant Polyethylene |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.256 + 0.42 |
| Weight (lb) | 40 |
| Flame Test Rating | FT-4 |
| Voltage | 300 |
| MHz | na |
| Temperature | -40 to 80 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Outdoor Direct Burialw/Steel Messenger Cat6 550Mhz |
Resources
Download 8824104L6-LTM Spec Sheet
