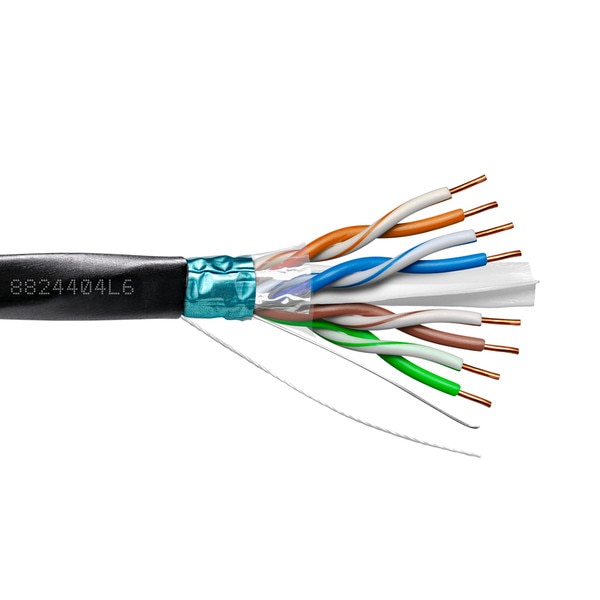

Provo Outdoor Direct Burial CAT6 550MHz 23-4pr SOL BC FL SH RoHS – Black JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- HDPE Insulation
- 100% Foil Shield
- Tinned Copper Drain Wire
- 550Mhz
- Low Density UV Resistant Polyethylene Jacket – Black
- -40° C +80° C
- Colour Code: Chart Number 5
Specifications
| Specifications for: 8824404L6: Provo Outdoor Direct Burial CAT6 550MHz 23-4pr SOL BC FL SH RoHS – Black JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Tinned Copper |
| Insulation Type | HDPE |
| Jacket Type | LDPE |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.27 |
| Weight (lb) | 36/18 |
| Flame Test Rating | na |
| Voltage | 300 |
| MHz | 550 |
| Temperature | -40 to 80 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Outdoor Direct Burial Foil Shielded CAT6 550Mhz |
Resources
Download 8824404L6 Spec Sheet
