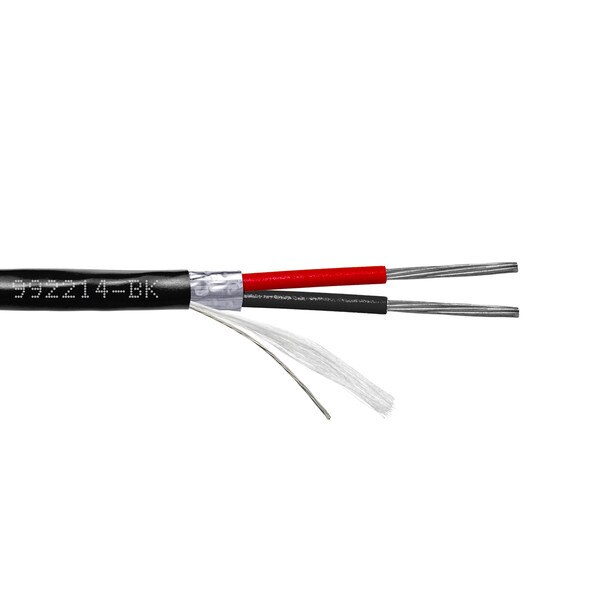

Provo Plenum Multi-Conductor 22-2c STR TC FL SH CMP CSA FT6 RoHS – Black JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- Conductors Twisted
- Plenum PVC Insulation
- 100% Foil Shield
- Tinned Copper Drain Wire
- Plenum PVC FT-6Jacket – Black
- Colour Code: Chart Number 1
Specifications
| Specifications for: 992214-BK: Provo Plenum Multi-Conductor 22-2c STR TC FL SH CMP CSA FT6 RoHS – Black JKT | |
|---|---|
| Conductors | 2c |
| Gauge (AWG) | 22 |
| Conductor Type | 7x30 Stranded Tinned Copper |
| Shielding | 100% Aluminium Foil Shielded |
| Drain Wire | Stranded Tinned Copper |
| Insulation Type | Plenum PVC |
| Jacket Type | Plenum PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.122 |
| Weight (lb) | 12/6 |
| Flame Test Rating | FT-6 |
| Voltage | 600 |
| MHz | na |
| Temperature | 75 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | Chart Number 1 |
| Category | Plenum Multi-Conductor Foil Shielded FT-6 |
