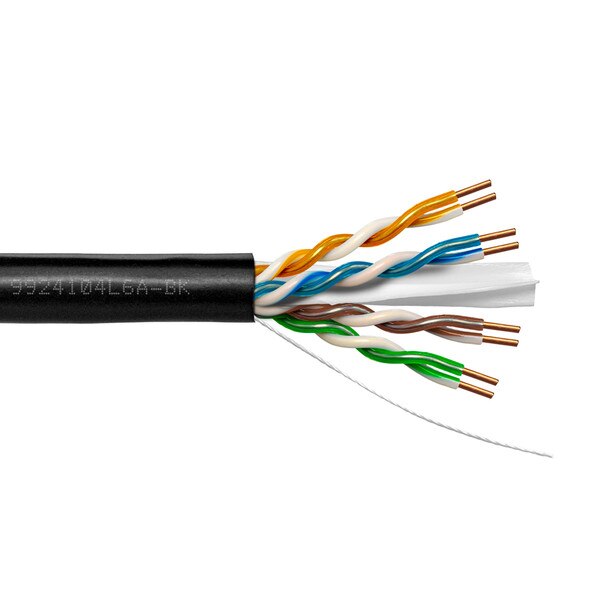

Provo CAT6A UTP Cable 23-4pr SOL BC UNSH 500MHz CMP ETL FT6 RoHS – Black JKT
Details
Details
Summary
- Solid Bare Copper Conductors
- Twisted Pairs
- FEP Insulation
- No Shield UTP
- 500Mhz
- Plenum FT-6 Black Jacket
- Colour Code: Chart Number 5
Specifications
| Specifications for: 9924104L6A-BK: Provo CAT6A UTP Cable 23-4pr SOL BC UNSH 500MHz CMP ETL FT6 RoHS – Black JKT | |
|---|---|
| Conductors | 4pr |
| Gauge (AWG) | 23 |
| Conductor Type | Solid Bare Copper |
| Shielding | Unshielded |
| Drain Wire | na |
| Insulation Type | FEP |
| Jacket Type | Plenum |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.32 |
| Weight (lb) | 40 |
| Flame Test Rating | FT-6 |
| Voltage | na |
| MHz | 500 |
| Temperature | -20 to 75 °C |
| Put-up Meters | 300 |
| Compliance | RoHS |
| Colour Code | Chart Number 5 |
| Category | Cat6A 500Mhz Unshielded FT-6 |
Resources
Download 9924104L6A-BK Spec Sheet
