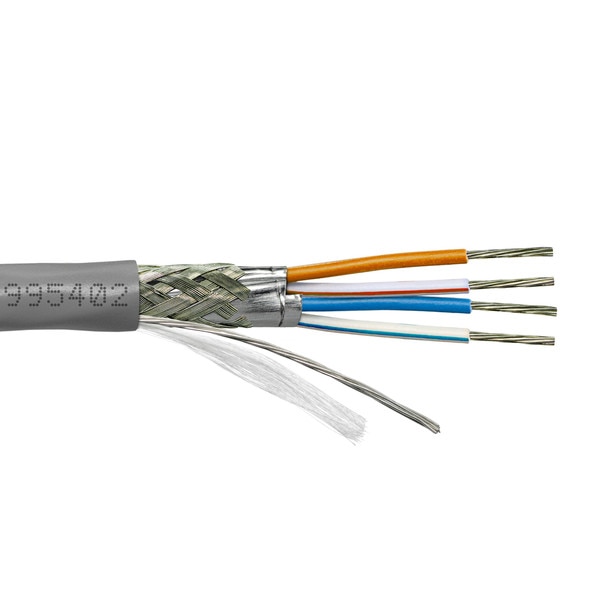

Provo Plenum Low Cap Multi-Pair RS485 24-2pr STR TC 100% FL SH + 90% TC BRD SH CMP CSA FT6 RoHS – Grey JKT
Details
Details
Summary
- Stranded Tinned Copper Conductors
- Twisted Pairs
- Foam FEP Insulation
- 100% Aluminum Foil Shield
- 90% Braided Tinned Copper Shield
- 24awg Stranded Tinned Copper Drain Wire
- FT-6 Low Smoke PVC Jacket – Grey
- Colour code: White/Blue and Blue/White, White/Orange and Orange/White
Specifications
| Specifications for: 995402: Provo Plenum Low Cap Multi-Pair RS485 24-2pr STR TC 100% FL SH + 90% TC BRD SH CMP CSA FT6 RoHS – Grey JKT | |
|---|---|
| Conductors | 2pr |
| Gauge (AWG) | 24 |
| Conductor Type | 7x32 Stranded Tinned Copper |
| Shielding | 100% Foil Shield 90% Braided Tinned Copper |
| Drain Wire | Tinned Copper |
| Insulation Type | Foamed FEP |
| Jacket Type | Low Smoke PVC |
| Armour | na |
| Armour O.D. | na |
| Nominal O.D. | 0.31 |
| Weight (lb) | 28/14 |
| Flame Test Rating | FT-7 |
| Voltage | 300 |
| MHz | na |
| Temperature | 0 to 75 °C |
| Put-up Meters | 300/150 |
| Compliance | RoHS |
| Colour Code | White/Blue and Blue/White White/Orange and Orange/White |
| Category | Plenum Multi-Pair RS485 Low Cap FT-6 |
Resources
Download 995402 Spec Sheet
